Module, Fuel Pump Control: Removal
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Reposition the right trunk carpet to access Fuel Pump Control Module (FPCM). Refer to CARPET, REMOVAL
.

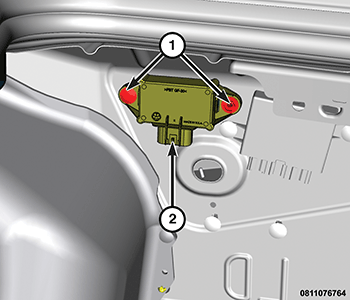

- Disconnect the body wire harness connector (2) from the FPCM.
- Remove the fasteners (1) that secure the FPCM to the quarter inner panel.
- Remove the FPCM from the vehicle.
