Module, Keyless Ignition Node (Kin): Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

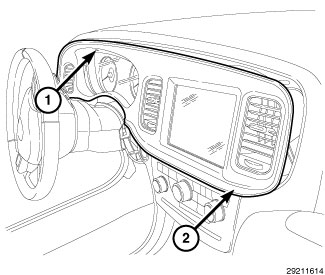

Mid ICS shown, base similar.
- Push the Keyless Ignition Node (KIN) into the instrument panel until it snaps into place.
- Reach through the Integrated Center Stack (ICS) screen opening and connect the KIN electrical connector.
- Install the instrument cluster bezel (2). Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
