Module, Radio Receiver: Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
- Position the Radio (also known as the Radio Module) near the radio mounting location of the instrument panel.
- Reconnect the antenna connectors (3) and the instrument panel wire harness connector (2) to the back of the radio.NOTE:
The SDARS/GPS connector on the radio may be either curry or blue colored, it will also be marked with yellow tape just below the connector.
- If equipped, reconnect the Universal Serial Bus (USB) connector (1) to the back of the radio.

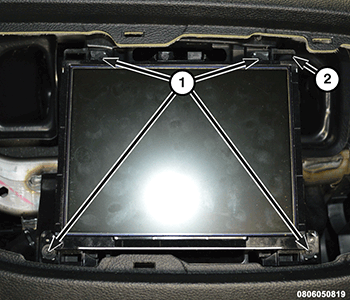

- Position the radio into the mounting location of the instrument panel support structure (2).
- Install and tighten the four screws (1) that secure the radio to the instrument panel support structure. Tighten the screws securely.
- Reinstall the instrument cluster bezel onto the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
- Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
NOTE:
RA3 and RA4 Radio SiriusXM Guardian Application will be automatically updated in the replacement radio through the embedded cellular phone of the radio based upon the current subscription status of the customer. This update process may take up to an hour, depending upon the number of apps and available cellular services access. The dealer is not expected to perform this process or to oversee it, but may need to explain to the vehicle owner or operator that some features and applications may not be fully restored and overall system response may be slowed until the process has completed.
