Module, Vehicle System Interface (VSIM): Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

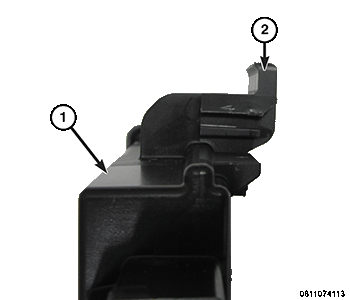

- Position the Vehicle System Interface Module (VSIM) to the bracket with the upper guide (2) aligned with the VSIM bracket opening.

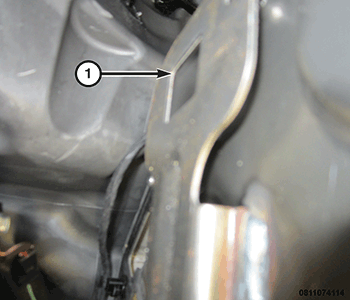

- Engage the upper VSIM guide to the slot opening (1) located at the top of the VSIM bracket.
- Seat the lower portion of the VSIM to the bracket and press inward until the lower guide (1) snaps into position.
- Connect all relevant wiring harness connections to the VSIM.
- Install the instrument panel end cap. Refer to CAP, INSTRUMENT PANEL END, INSTALLATION .
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable.
