B2840-87-Left Headlamp Swiveling Control - Missing Message: Notes
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

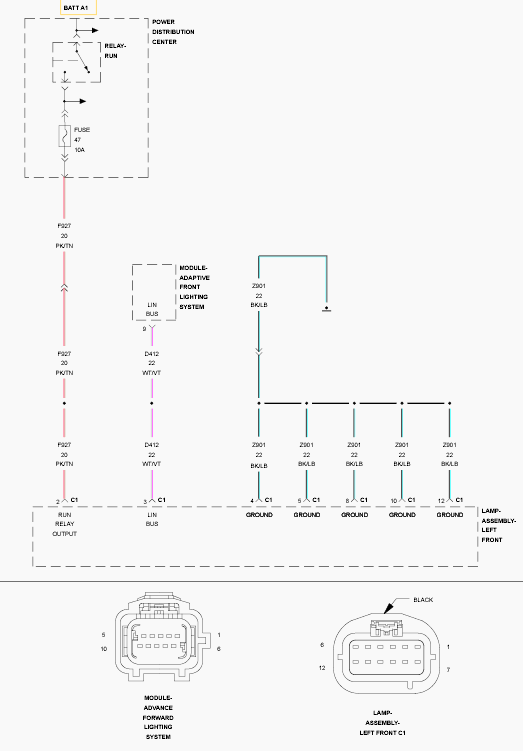

Fig 1: Left Headlamp Swiveling Control Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
