(Steering Column Control Module (SCCM) - Electrical Diagnostics)
>>
Diagnosis And Testing
>>
U1008-00-Lin 1 Bus
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

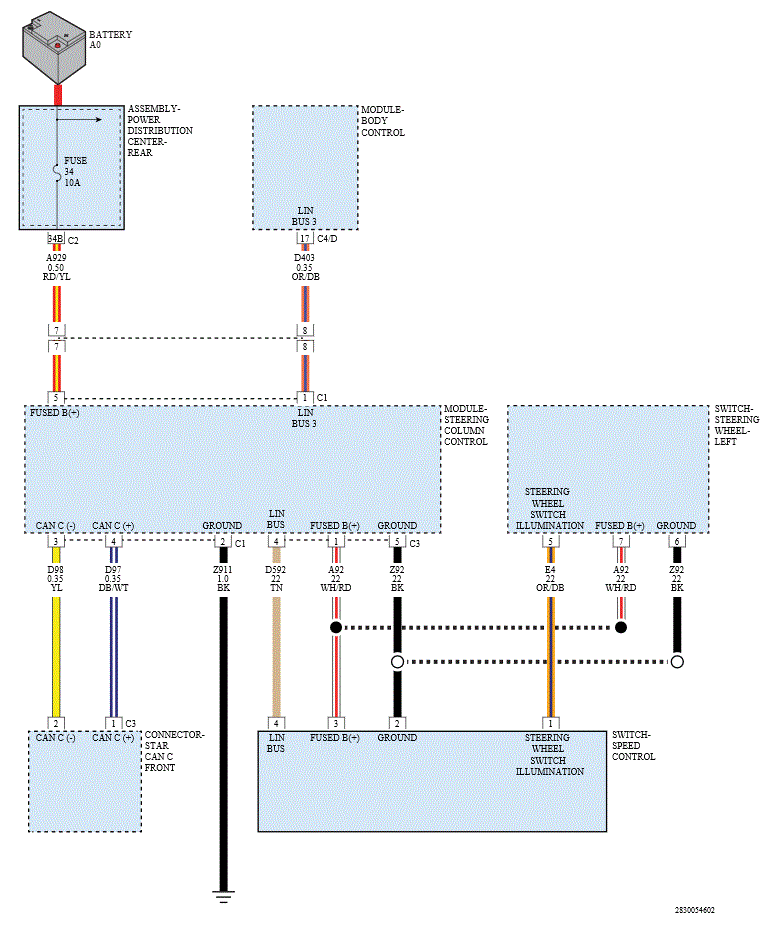

U1008-00-Lin 1 Bus: Notes
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
