Wheel, Steering: Installation

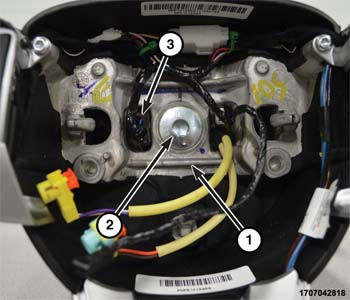

GC0162414Courtesy of CHRYSLER GROUP, LLC
CAUTION:

If the steering wheel is excessively off-center while driving, outside of Chassis specifications, inadvertent ESC activations may occur on a vehicle so equipped.

  1. Align the spline on the steering wheel hub to the column shaft, then install the steering wheel (1).
    NOTE:

    A new steering wheel bolt (2) must be installed every time the bolt is removed.

  2. Install a NEW  steering wheel bolt (2) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  3. Connect all wire harness connectors (3).
  4. Install the driver airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  6. Test the operation of the horn, lights and any other functions that are steering column operated.
