Module, Telematics Gateway: Installation: Installation

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

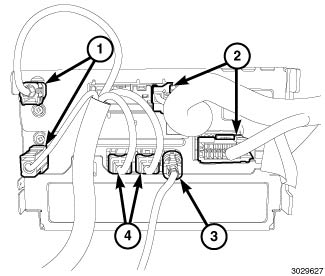

Fig 1: Antenna(s), Video Cable, RF HUB, Wiring Connectors And UCI Cables

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Mid level shown in illustration, base similar.

Position the Telematics Gateway Module (TGM) close to the instrument panel to connect the electrical connectors.
If equipped, connect the antenna(s) (1), RF HUB and UCI cables (4), video cable (3) and wiring connectors (2) to the TGM.

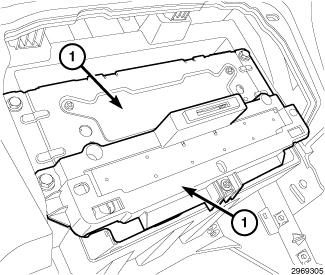

Fig 2: Telematics Gateway Assembly
Courtesy of CHRYSLER GROUP, LLC
Position the telematics gateway module into the instrument panel cavity and install the TGM (1) retainers. Tighten the fasteners securely.

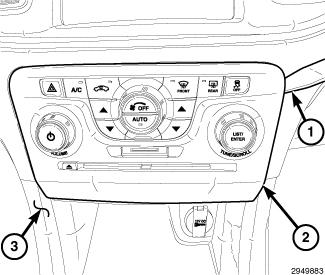

Fig 3: Switch Bank
Courtesy of CHRYSLER GROUP, LLC
Install the switch bank (2). Refer to POD, SWITCH BANK, INSTALLATION .
Connect the negative battery cable.
Restore user data from backup. Refer to STANDARD PROCEDURE .
