Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

Disconnect and isolate the negative battery cable.
Remove the instrument panel glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .

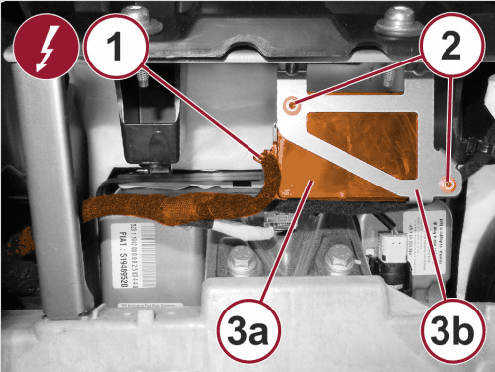

Fig 1: Compass Module, Electrical Connector, Rivets & Support Bracket
Courtesy of CHRYSLER GROUP, LLC
Disconnect the compass module electrical connector (1).
Using a drill with a suitable bit, remove the rivets (2).
Remove the compass module (3a) from the support bracket (3b).
