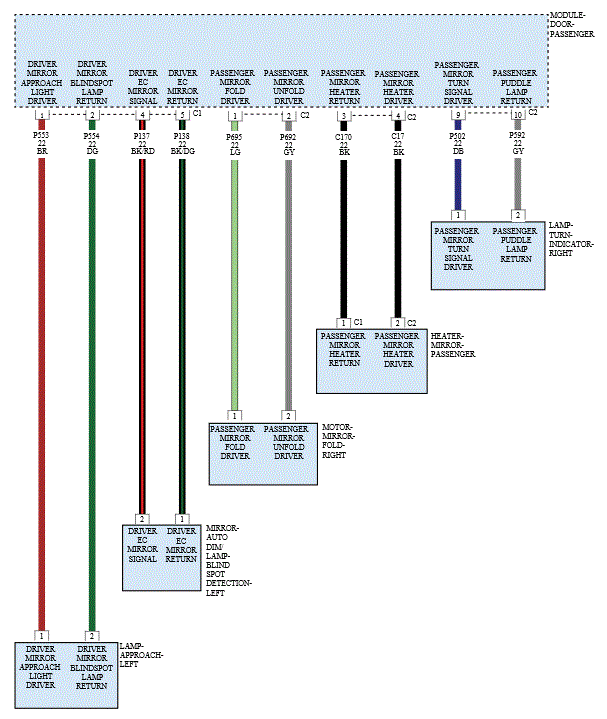

B1F05-13-ELECTROCHROMATIC Mirror Control Circuit-Circuit Open: Notes

GC0168220

Courtesy of CHRYSLER GROUP, LLC
