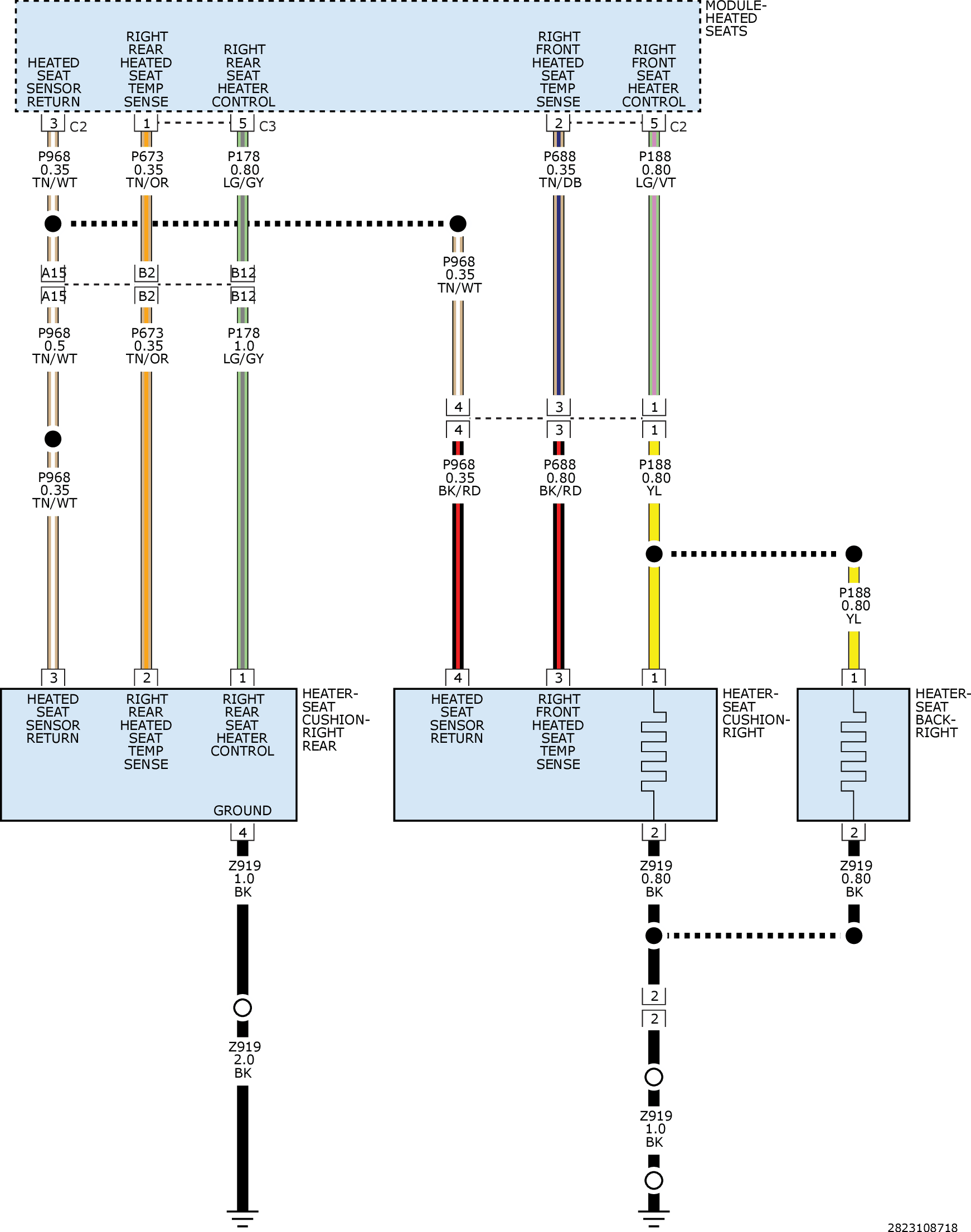

B1E9C-13-Rear Right Heater Control Circuit - Circuit Open: Notes

GC0180307

Courtesy of CHRYSLER GROUP, LLC
