Module-Video C1 (Standard) Connector End View (D3859A)

Harness-Family: Console_Center

Color: WHITE

Gender: FEMALE

Part Number: D4K10A-1D5A5-B

Part Description: Not Available

Connector No: D3859A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

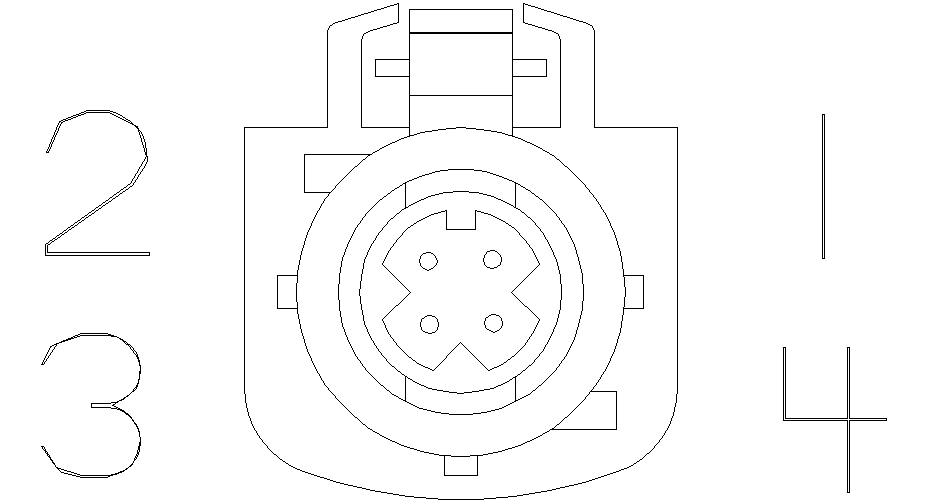

Fig 1: Module-Video C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Video C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X912

GY/OG

VIDEO LVDS DATA 0 (+)

N/A

X911

GY/BN

VIDEO LVDS DATA 0 (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
