Module-Video C2 (Standard) Connector End View (D3859B)

Harness-Family: Console_Center

Color: BLACK

Gender: FEMALE

Part Number: 175966-2

Part Description: Not Available

Connector No: D3859B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Video C2 Connector End View (Standard)

Courtesy of CHRYSLER

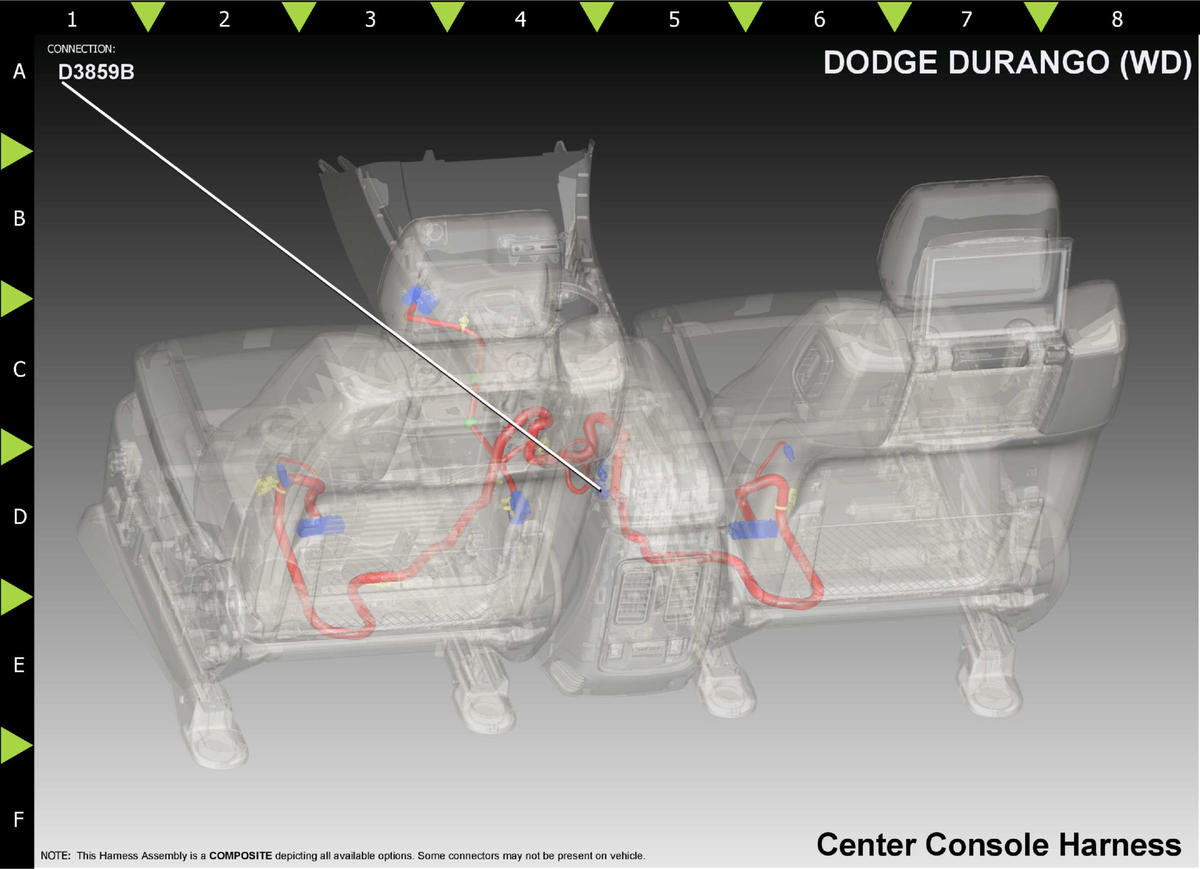

Fig 2: Module-Video C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A936

0.50

FUSED B(+)

N/A

D199

WH/GY

0.50

CAN IHS (+)

N/A

D198

0.50

CAN IHS (-)

N/A

Z912

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
