Torque Converter: Operation: Notes

Courtesy of CHRYSLER GROUP, LLC

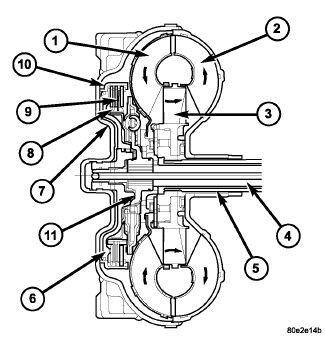

The torque converter housing has a unique shape to incorporate the Torque Converter Clutch (TCC) and flex plate connection. The torque converter uses the typical turbine, impeller and stator assemblies found in a standard torque converter assembly. The torque converter drives the pump through the splines on the inside of the hub. The torque converter uses a multi-disc torque converter clutch system that improves the durability and the holding pressure in the lock-up circuit. The torque converter incorporates a turbine dampening system. This system suppresses torsional vibrations from the engine to ensure optimal shift quality and reduce noise and vibration concerns.

TCC RELEASE  When the TCC is open, the TCC piston is pushed to its default position by torque converter chamber pressure. The Torque Converter Switch Valve (SV-TC) provides pressure for torque converter operation which has been regulated by the Torque Converter Pressure Regulating Valve (TC-V). After exiting the torque converter, fluid moves into the cooling and lubrication circuits. The converter pressure retention valve (TCH1-V) ensures the torque converter pressure is a minimum of 0.35 bar (5 psi) when the TCC is open.

TCC APPLY  When the TCC solenoid is energized, fluid is directed to the torque converter switch valve (SV-TC) and TCC lockup valve (TCC-V). The TCC lockup valve directs fluid to the TCC and torque converter chamber. The torque converter switch valve directs fluid exiting the converter chamber to a secondary pressure retention valve (TCH2-V) which is calibrated to retain 1.0 bar (14.5 psi) of pressure in the converter. The torque converter switch valve also directs line pressure to the cooler and lubrication circuit.
