Steering System: Column: Removal

WARNING:

Before servicing the steering column the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury.

CAUTION:

Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage.

Courtesy of CHRYSLER GROUP, LLC

Position front wheels straight ahead.
Disconnect and isolate the negative (ground) cable from the battery.
Remove the airbag. Refer to AIR BAG, DRIVER, REMOVAL .

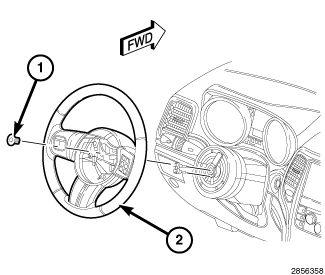

Disconnect steering wheel electrical connectors and remove the steering wheel bolt (1).
Slide the steering wheel (2) off the steering column assembly.
Inhibit rotation of the steering column with adhesive tape/or strap.
Remove the steering column module. Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

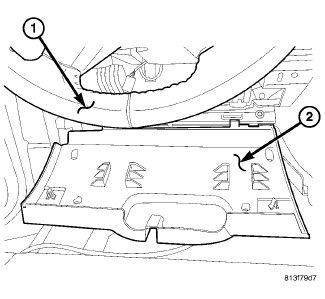

Remove the opening cover (2) and reinforcement; go to REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

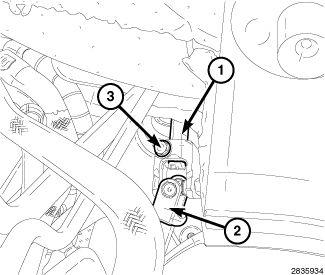

Cut the silencer pad to access the pinch bolt and the mounting bolts. Remove the pinch bolt (3) at the upper intermediate shaft coupling. Separate shaft from coupler.

Courtesy of CHRYSLER GROUP, LLC

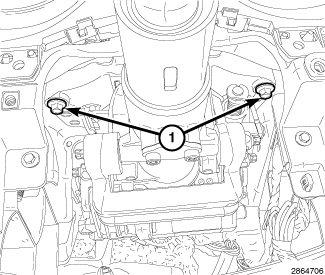

Remove front two column mounting bolts (1)

Courtesy of CHRYSLER GROUP, LLC

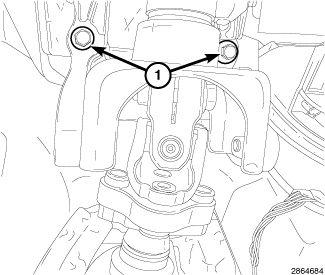

Support the column and remove the two remaining mounting bolts (1).
Remove column from the vehicle.
