Module, Radio Frequency (RF Hub): Installation
NOTE:
Replace and Program the module(s) per the RF-Hub, BCM, PCM FOBik and ELV Replacement and Programming Order Guide. Refer to STANDARD PROCEDURE .

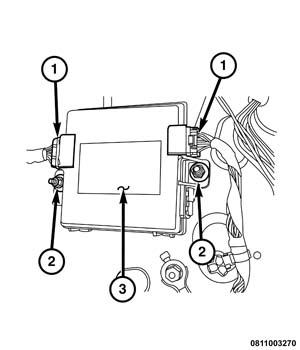

- Position the RF Hub (3) to the vehicle and install the retainers (2).
- If equipped, connect the remote start antenna connector.
- Connect the electrical connectors (1).
- Install the left rear cargo interior trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the Intelligent Battery Sensor (IBS) to the negative battery post.
NOTE:
Program the RF-Hub. Refer to MODULE, RADIO FREQUENCY (RF HUB), MODULE PROGRAMMING .
