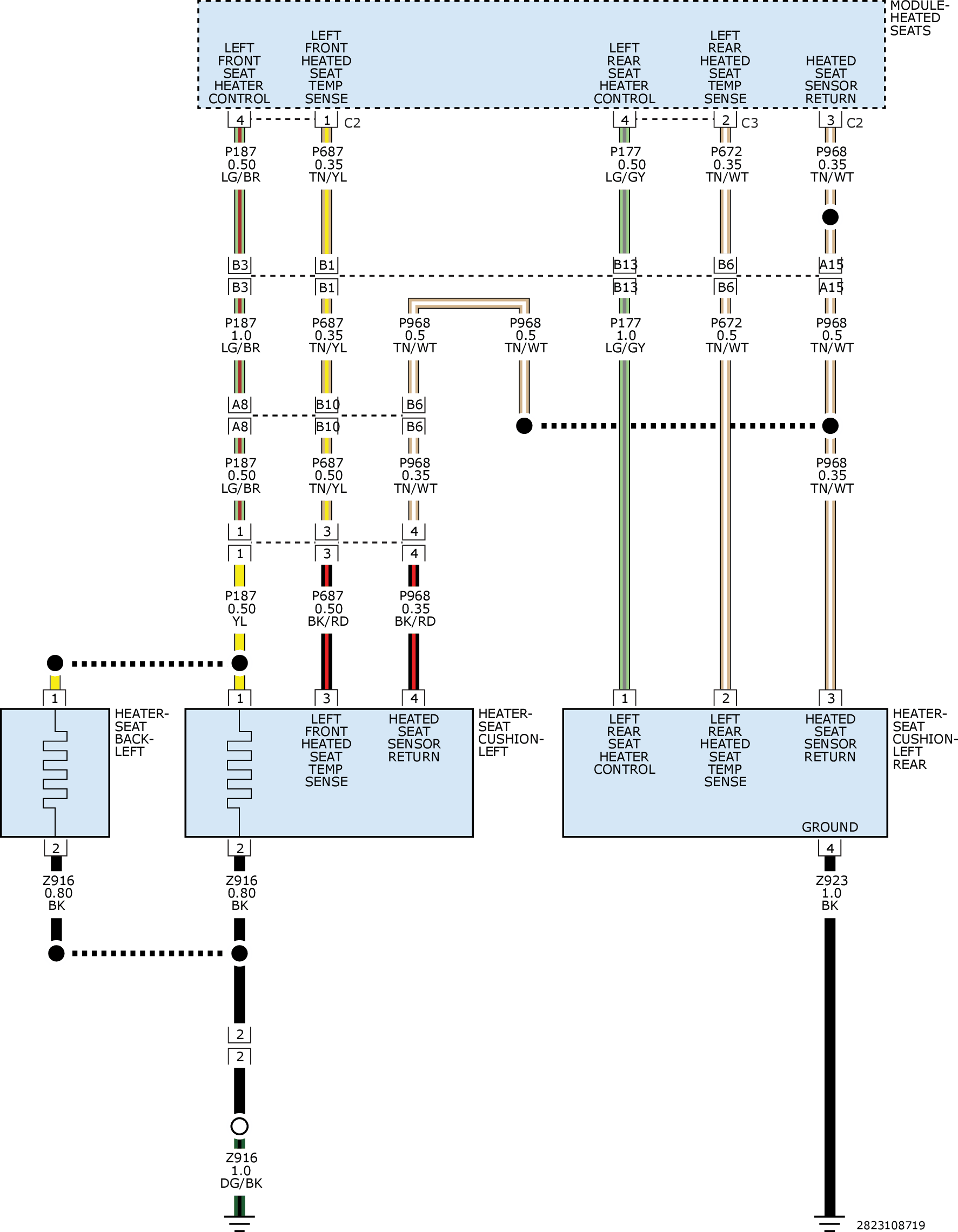

B1E9B-13-Rear Left Heater Control Circuit - Circuit Open: Notes

GC0180112

Courtesy of CHRYSLER GROUP, LLC
