Module-Body Control C3/C (Standard) Connector End View (D3806C)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 7287-3831

Part Description: Not Available

Connector No: D3806C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

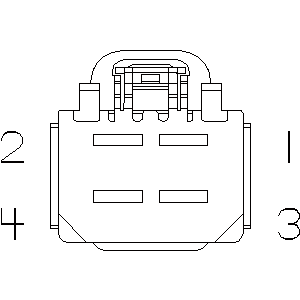

Fig 1: Module-Body Control C3/c Connector End View (Standard)

Courtesy of CHRYSLER

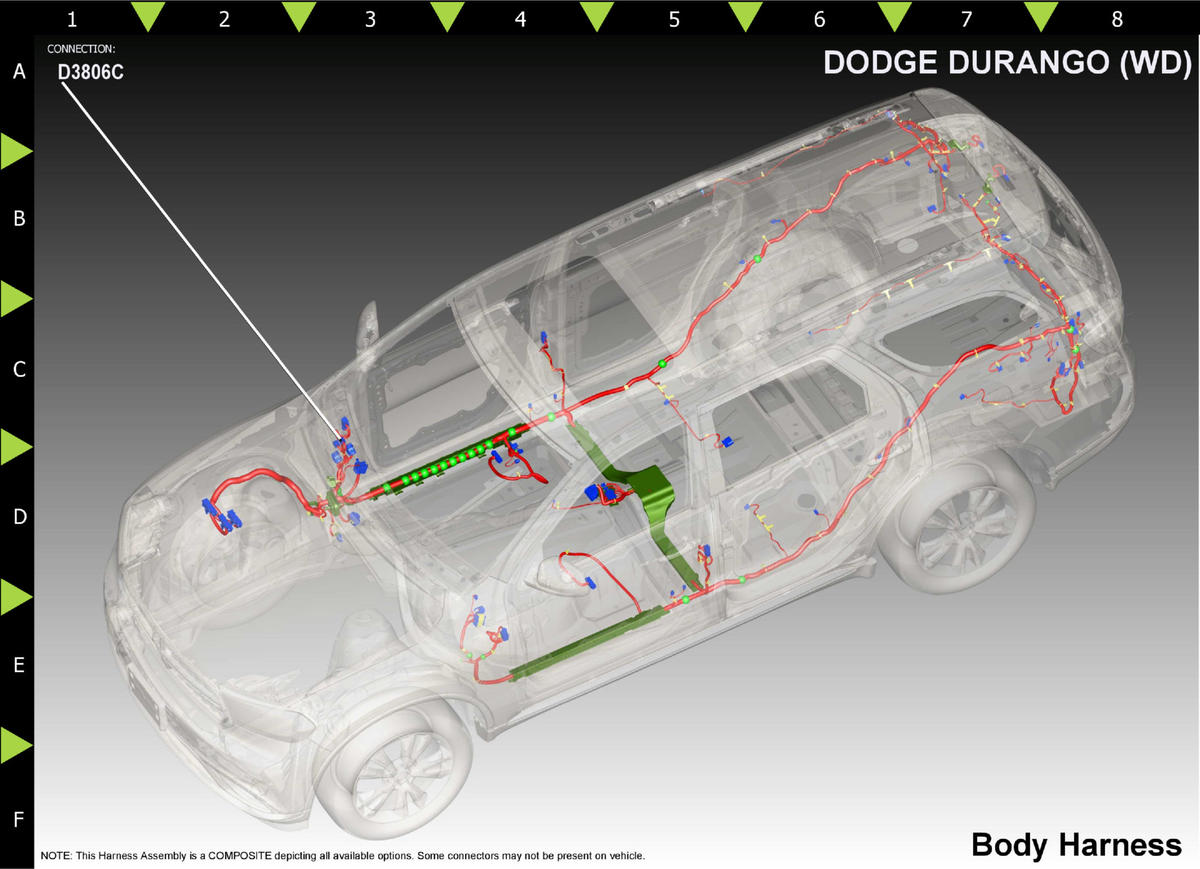

Fig 2: Module-Body Control C3/c Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z919

4.0

GROUND

N/A

A906

4.0

FUSED B(+)

N/A

A903

4.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
