Module-Body Control C6/F (Standard) Connector End View (D3806F)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 13850165_13850160_13850161

Part Description: Not Available

Connector No: D3806F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C6/f Connector End View (Standard)

Courtesy of CHRYSLER

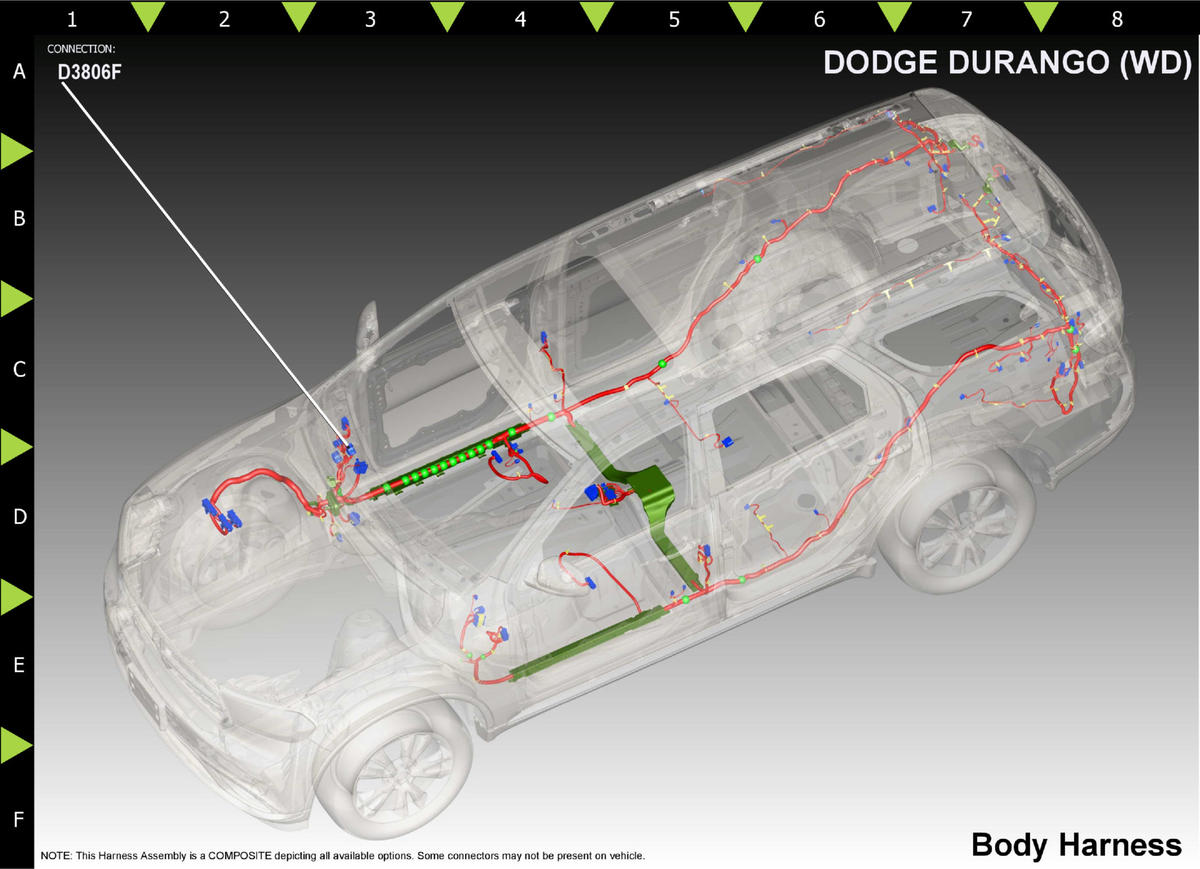

Fig 2: Module-Body Control C6/f Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P910

BG/GN

0.50

FRONT DRIVER DOOR UNLOCK

N/A

P777

GN/DG

0.50

DOOR LOCK RELAY CONTROL

N/A

P292

VT/GN

0.50

PASSENGER DOORS UNLOCK RELAY CONTROL

N/A

P223

GN/WH

0.50

DECKLID/LIFTGATE RELEASE SWITCH SENSE

N/A

G75

0.50

DRIVER DOOR AJAR SWITCH SENSE

N/A

P371

BG/BN

0.35

DOOR LOCK SW RTN DRIV

N/A

D146

0.35

CAN IHS (-)

N/A

D145

WH/GN

0.35

CAN IHS (+)

N/A

P806

GN/WH

0.35

INVERTER STATUS INDICATOR DRIVER

N/A

G74

0.13

PASSENGER DOOR AJAR SWITCH SENSE

N/A

P372

BG/OG

0.35

DOOR LOCK SW RTN PASS

N/A

G78

VT/OG

0.35

DECKLID/LIFTGATE AJAR SWITCH SENSE

N/A

L563

WH/GY

0.50

LEFT REAR LIGHTING FAULT SENSE

N/A

DG/VT

0.50

HORN SWITCH SENSE

N/A

L562

WH/BG

0.50

RIGHT REAR LIGHTING FAULT SENSE

N/A

L71

WH/GY

0.50

LEFT REAR PARK LAMP DRIVER

N/A

P807

GN/BU

0.35

INVERTER SWITCH SIGNAL

N/A

L655

WH/OG

0.50

LEFT REAR TURN SIGNAL CONTROL

N/A

L51

WH/DG

0.80

BRAKE LAMP SWITCH OUTPUT

N/A

L52

0.50

LEFT STOP LAMP DRIVER

N/A

L15

WH/BG

0.50

LEFT BACKUP LAMP DRIVER

N/A

L62

WH/YE

0.50

RIGHT REAR TURN LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
