Module-EPS C2 (Standard) Connector End View (D2777B)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 33471-0306

Part Description: Not Available

Connector No: D2777B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

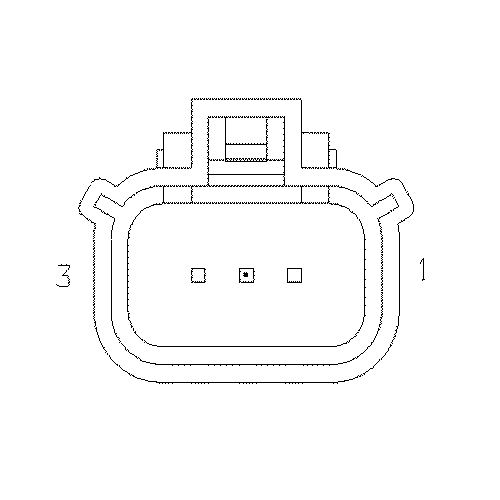

Fig 1: Module-Eps C2 Connector End View (Standard)

Courtesy of CHRYSLER

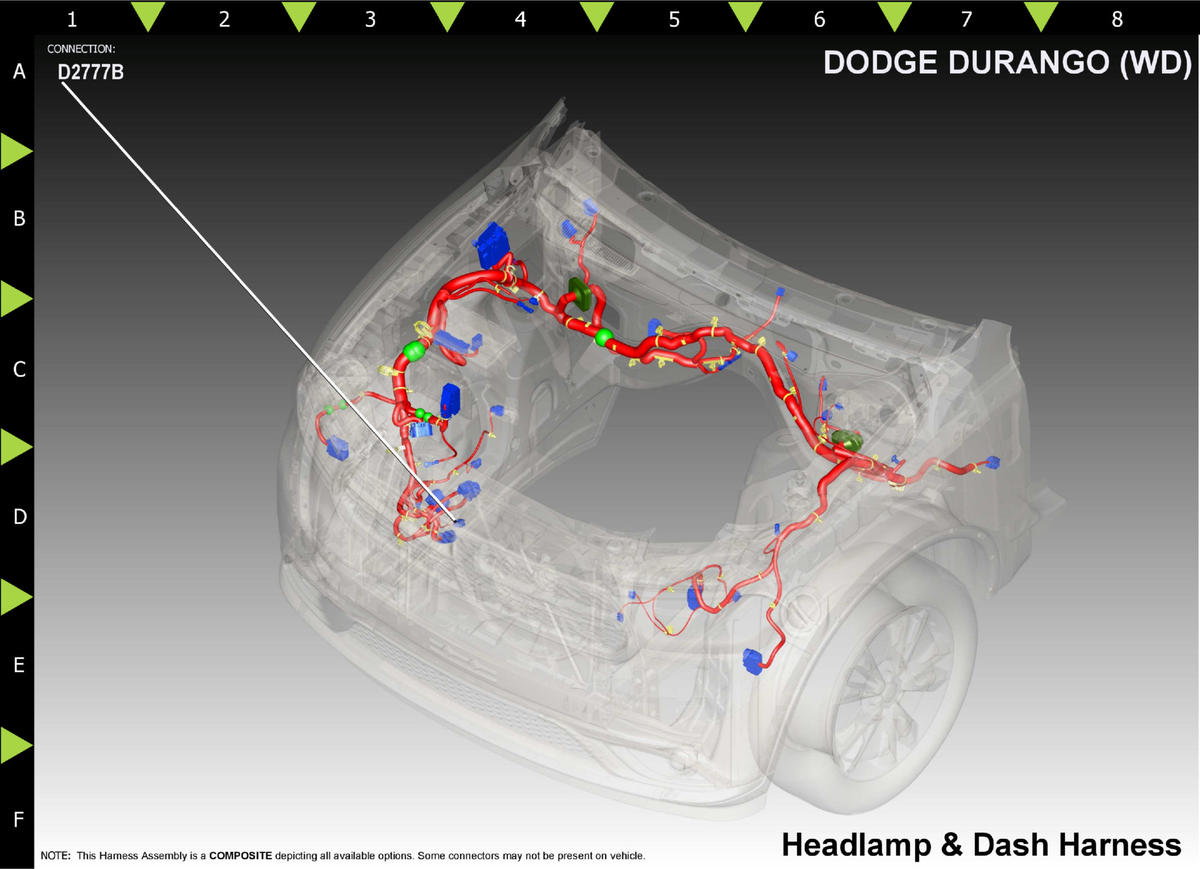

Fig 2: Module-Eps C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D138

0.35

CAN C (-)

N/A

D139

YE/BN

0.35

CAN C (+)

N/A

F942

PK/GN

0.35

FUSED IGNITION SWITCH OUTPUT (RUN-START)

N/A

⁽¹⁾	Pins not listed are not used for this connector
