Module-Radio-Freq Hub C1 (Standard) Connector End View (D2665A)

Harness-Family: Body

Color: BROWN

Gender: FEMALE

Part Number: 2272010-1

Part Description: Not Available

Connector No: D2665A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Radio-Freq Hub C1 Connector End View (Standard)

Courtesy of CHRYSLER

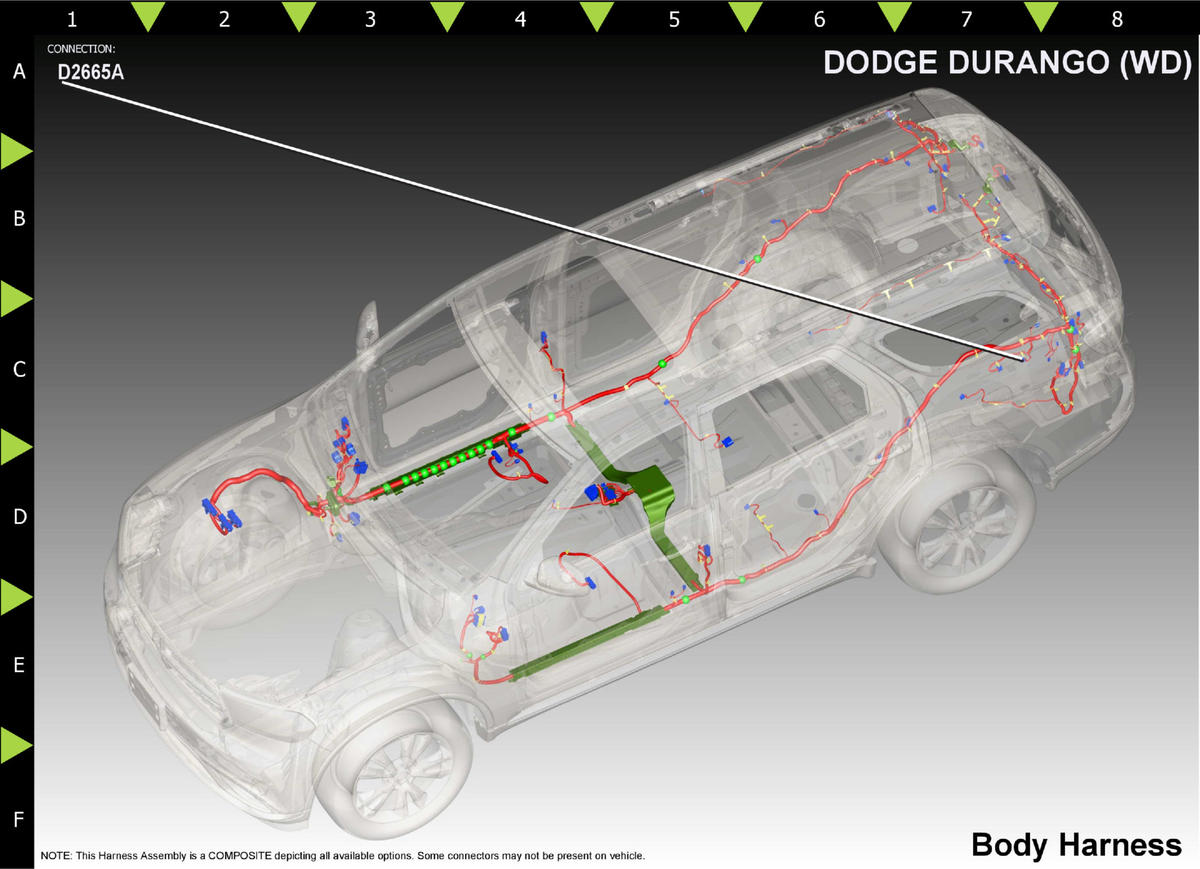

Fig 2: Module-Radio-Freq Hub C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F20

PK/WH

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

T824

YE/DB

0.50

TRS PARK SIGNAL

N/A

Z923

0.75

GROUND

N/A

A910

0.75

FUSED B(+)

N/A

G201

VT/BU

0.35

IGNITION SWITCH POSITION SIGNAL

N/A

D122

WH/GN

0.35

SECURITY K LINE COMMUNICATION

N/A

D40

0.35

CAN C (-)

N/A

D39

0.35

CAN C (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
