U0241-00-Lost Communication With Auto HIGHBEAM Headlamp Control Module: Notes

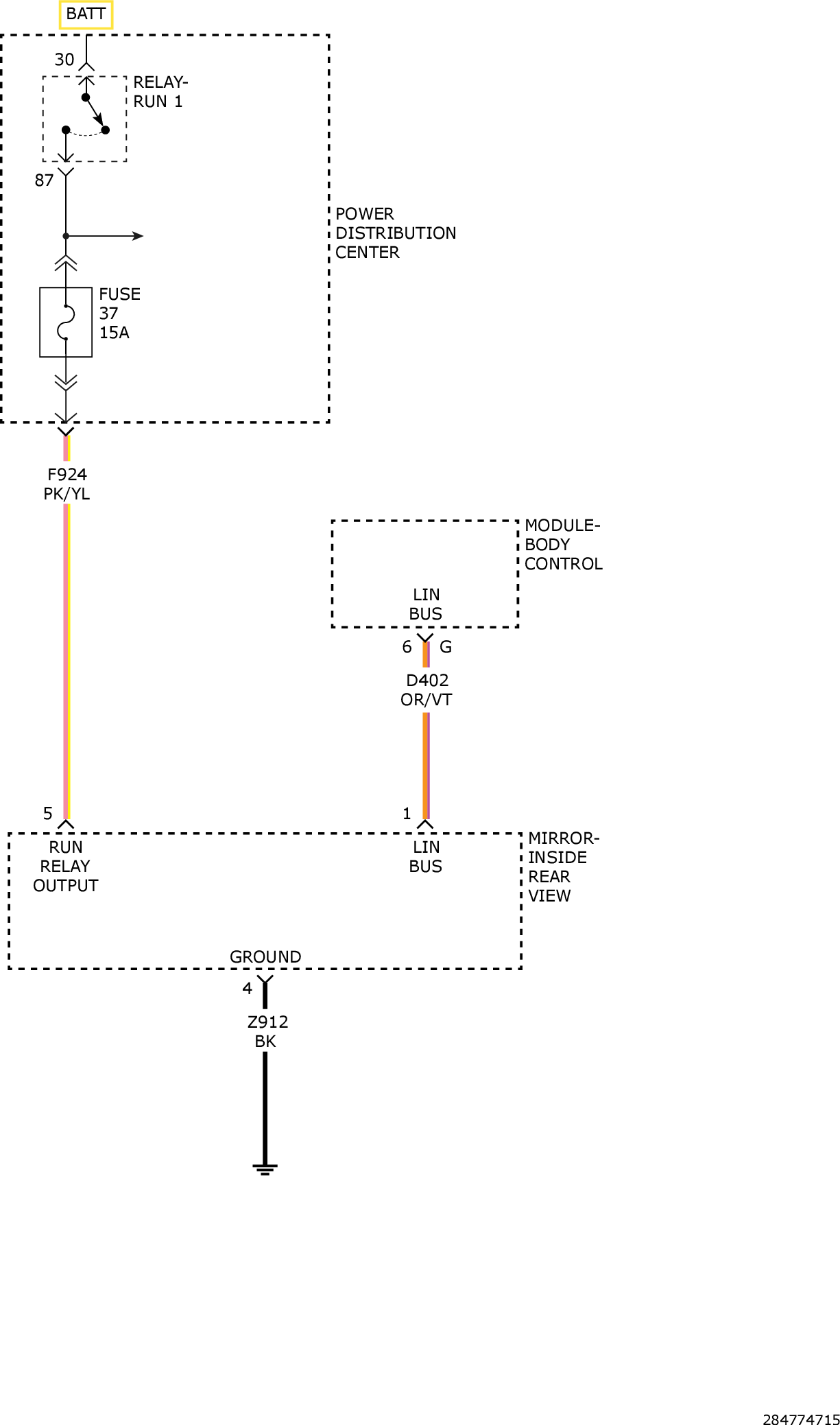

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

GC0157020Courtesy of CHRYSLER GROUP, LLC
