Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 2098963-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

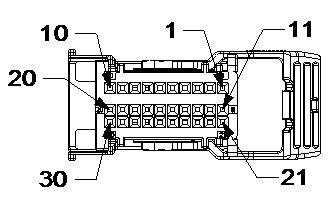

Fig 1: Module-Occupant Restraint Controller C1 Connector End View

Courtesy of CHRYSLER

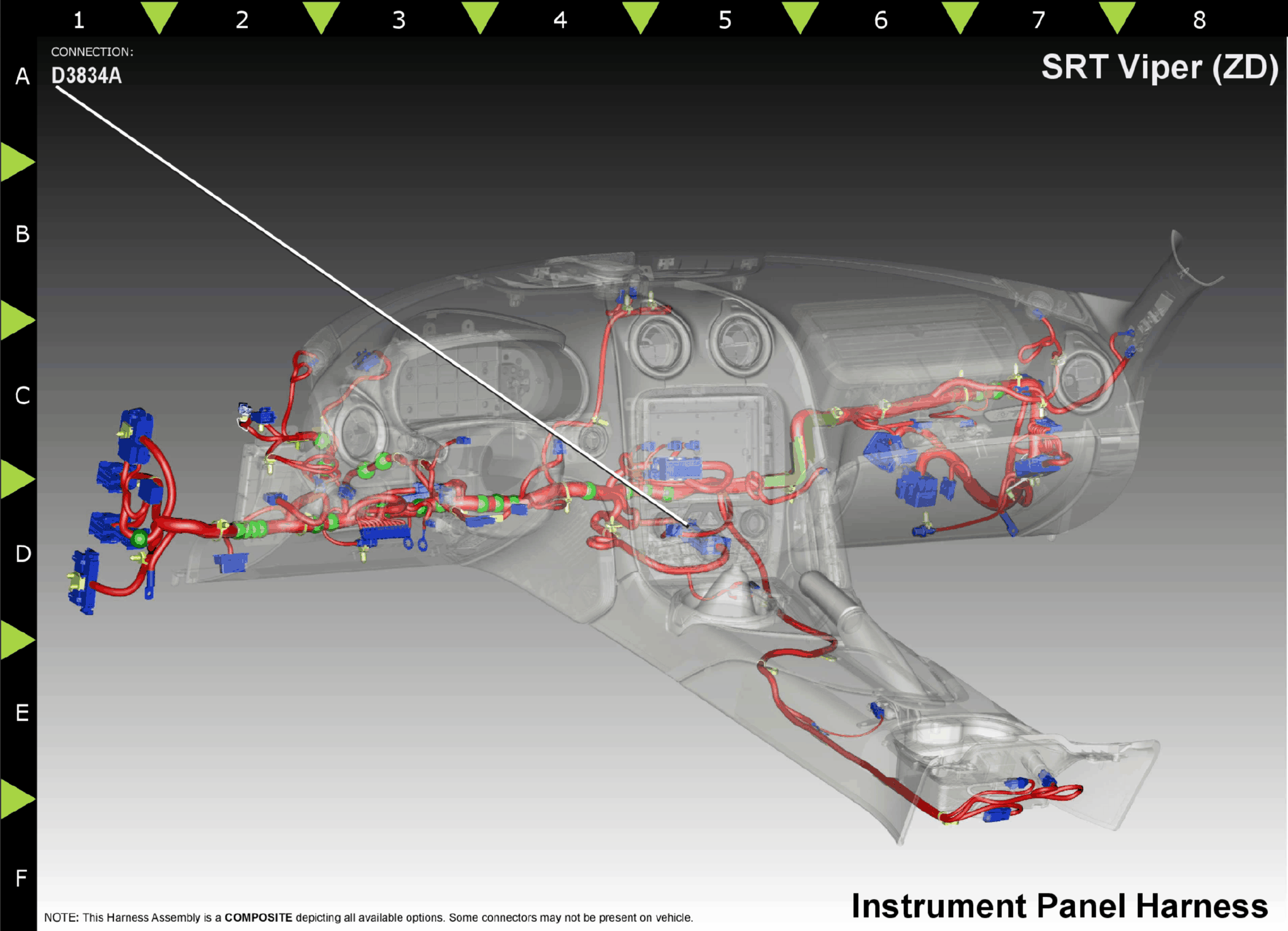

Fig 2: Module-Occupant Restraint Controller C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

BU/BN

.50

DRIVER SQUIB 1 LINE 2

N/A

R45

GN/OG

.50

DRIVER SQUIB 1 LINE 1

N/A

R44

GY/OG

.50

PASSENGER SQUIB 1 LINE 1

N/A

R42

DG/BN

.50

PASSENGER SQUIB 1 LINE 2

N/A

R64

VT/WH

.50

PASSENGER SQUIB 2 LINE 1

N/A

R62

BU/VT

.50

PASSENGER SQUIB 2 LINE 2

N/A

D11

YE/DB

.35

CAN C (+)

N/A

R79

BU/VT

.50

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

R81

BU/WH

.50

LEFT FRONT IMPACT SENSOR GROUND

N/A

D12

.35

CAN C (-)

N/A

R82

WH/BU

.50

RIGHT FRONT IMPACT SENSOR GROUND

N/A

R80

VT/BU

.50

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

Z945

.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
