Relay-Radiator Fan-Series/Parallel (D838)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: D838

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Relay-Radiator Fan-Series/Parallel Connector End View

Courtesy of CHRYSLER

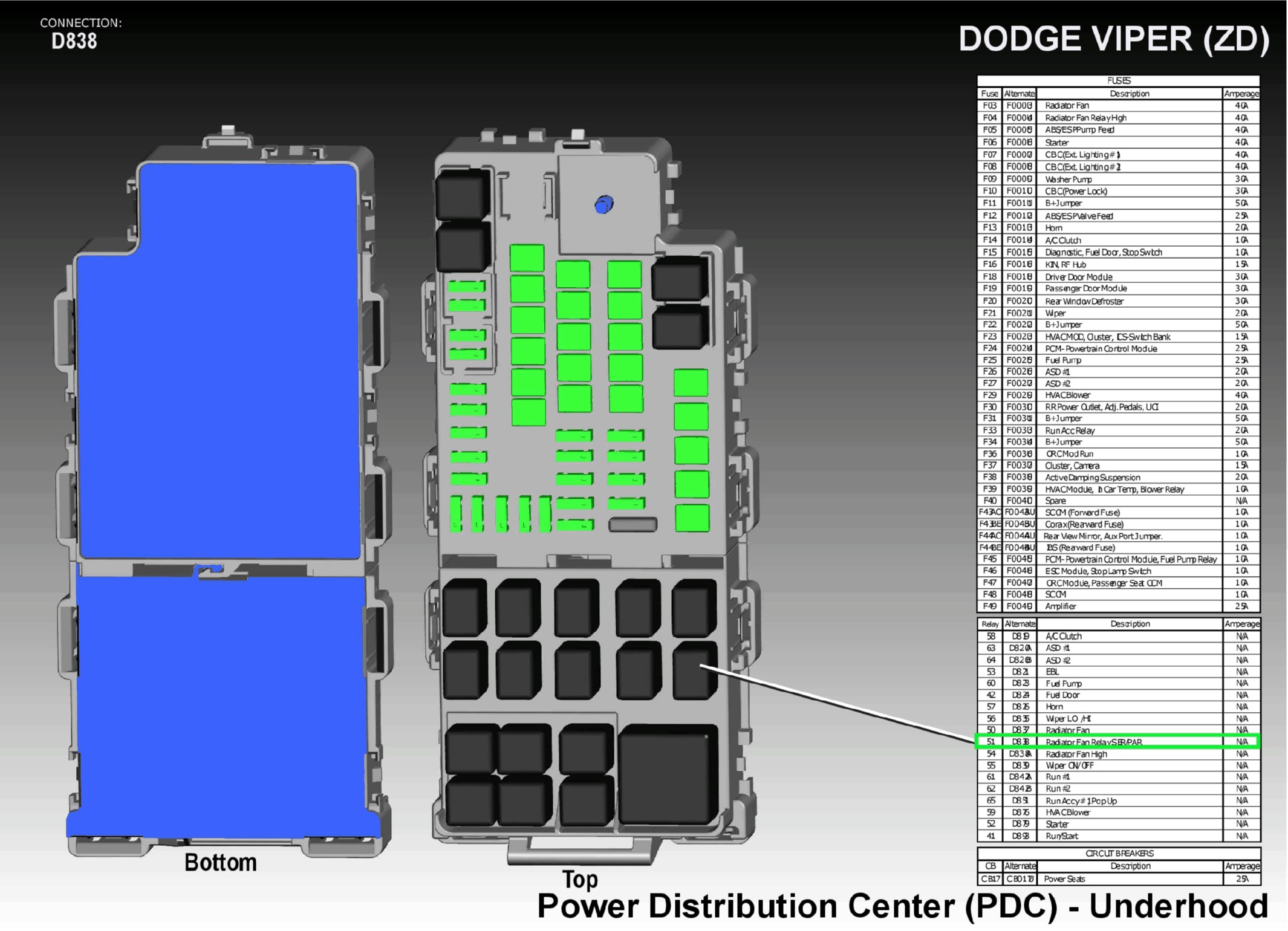

Fig 2: Relay-Radiator Fan-Series/Parallel Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N210

INTERNAL

RAD FAN HIGH/LOW CONTROL FEED

N/A

F343

INTERNAL

FUSED ASD RELAY OUTPUT

N/A

N112

INTERNAL

RAD FAN RELAY CONTROL

N/A

Z902

INTERNAL

GROUND

N/A

87A

N23

INTERNAL

LOW SPEED RAD FAN CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
