Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

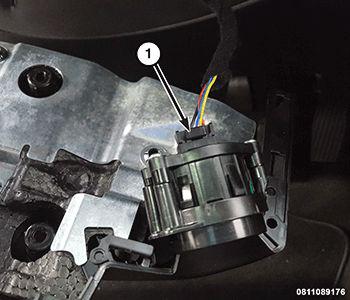

    Fig 1: (KIN) Module Wiring Harness Connector
    GC0173910Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wiring harness connector (1) from the back of the Keyless Ignition Node (KIN) module.

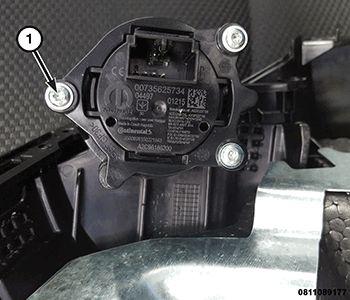

    Fig 2: (KIN) Module Screws
    GC0173970Courtesy of CHRYSLER GROUP, LLC
  4. Remove the three screws (1) securing the KIN to the opening cover.
