Sensor, Coolant Temperature: Installation

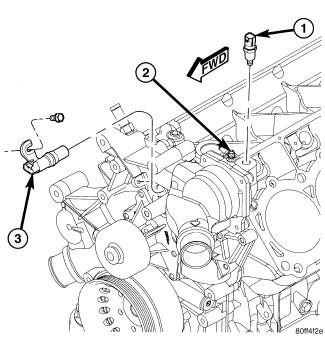

GC0135237Courtesy of CHRYSLER GROUP, LLC
1 - ENGINE COOLANT TEMPERATURE (ECT) SENSOR
2 - COOLING SYSTEM BLEED SCREW
3 - CAMSHAFT POSITION SENSOR
  1. Install the engine coolant temperature sensor. Tighten to 20 N.m (15 ft. lbs.).
  2. Connect the electrical connector to sensor.
  3. Fill the cooling system. Refer to FILLING COOLING SYSTEM  .
