Module, Forward Facing Camera (FFCM): Removal

  1. Disconnect and isolate the negative battery cable.
    GC0178208Courtesy of CHRYSLER GROUP, LLC
  2. Remove the rear view mirror trim cover (1) to gain complete access to the Forward Facing Camera Module (FFCM) (2).

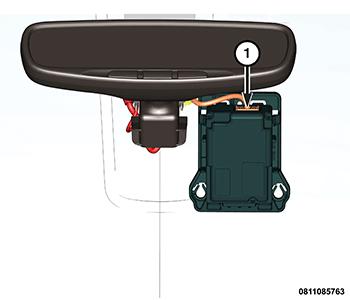

    GC0177375Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical connector (1) from the FFCM.
  4. Slide camera (ECU) and bracket rearward in vehicle to disconnect bracket from pins on windshield.
