Microphone Installation

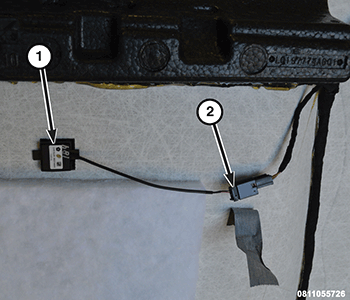

GC0172157Courtesy of CHRYSLER GROUP, LLC
  1. Install the microphone (1) into the headliner.
  2. Connect the wire harness connector (2) to the microphone.
  3. Install the headliner. Refer to HEADLINER, INSTALLATION .
  4. Connect the negative battery cable.
