Module, Glow Plug: Removal

GC0161798Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove nuts (1) the Power Distribution Center (PDC) cover (2).

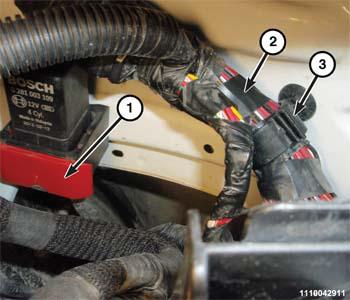

    GC0161896Courtesy of CHRYSLER GROUP, LLC
  3. Disengage wire harness retainer (3) and remove the wire harness (2).
  4. Disconnect the glow plug module wire harness connector (1).

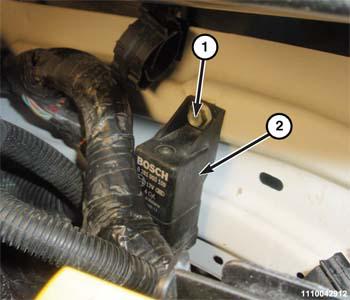

    GC0162004Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolt (1) and the glow plug module (2).
