Module-Transmission Control C1 (3.0L) Connector End View (D3855A)

Harness-Family: Body_Front

Color: BLACK

Gender: FEMALE

Part Number: 1/01610/87

Part Description: Not Available

Connector No: D3855A

Option: 3.0L

Repair Kit Part Number: Not Available

Cavity Count: null

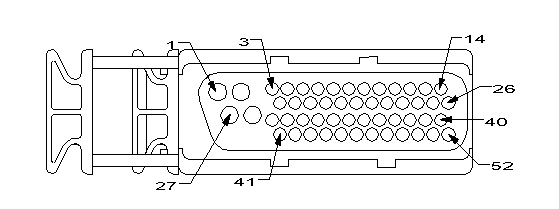

Fig 1: Module-Transmission Control C1 Connector End View (3.0L)

Courtesy of CHRYSLER

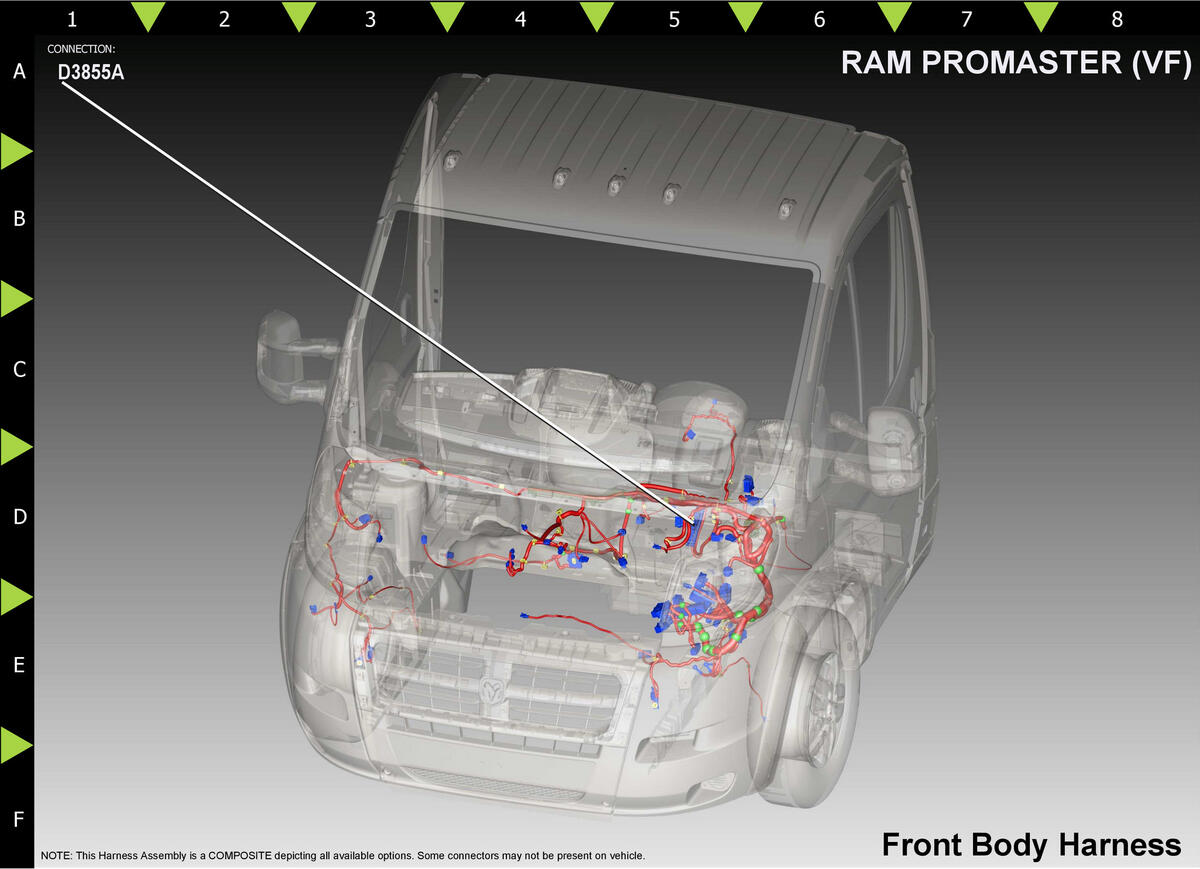

Fig 2: Module-Transmission Control C1 Component Location (3.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z837

1.5

GROUND

N/A

Z837

1.5

GROUND

N/A

D64

0.35

CAN C (-)

N/A

T193

BU/BK

0.5

SHIFTER POSITION SENSOR S2 EV SIGNAL

N/A

T191

BU/YE

0.5

SENSOR GROUND

N/A

D65

0.35

CAN C (+)

N/A

T422

BU/RD

0.5

SHIFTER POSITION SENSOR S1 ENGAGE SUPPLY

N/A

T420

BU/RD

0.5

SHIFTER POSITION SIGNAL 1

N/A

T824

GY/BN

0.35

TRS PARK SIGNAL

N/A

A966

BU/RD

1.0

FUSED B(+)

N/A

F307

GN/RD

0.75

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

F591

BN/BK

0.75

SHIFTER SOLENOID FEED

N/A

T104

RD/WH

0.5

TRANSMISSION PUMP CONTROL

N/A

F593

WH/GN

0.75

SOLENOID 1 FEED

N/A

D64

0.35

CAN C (-)

N/A

T421

BU/GY

0.5

SHIFTER POSITION SIGNAL 2

N/A

T423

BU/BN

0.5

SHIFTER POSITION SENSOR S1 GEAR SELECT SUPPLY

N/A

T388

OG/WH

0.5

CLUTCH SPEED SENSOR FEED

N/A

T38

GY/GN

0.35

LINE PRESSURE SIGNAL

N/A

T78

WH/VT

0.75

SOLENOID SUPPLY

N/A

F592

BN/RD

0.75

SOLENOID 2 FEED

N/A

D65

0.35

CAN C (+)

N/A

T194

WH/BK

0.5

SHIFTER POSITION SENSOR S2 GEAR SELECT RETURN

N/A

T192

WH/BU

0.5

SENSOR GROUND

N/A

T13

OG/BK

0.5

SPEED SENSOR GROUND

N/A

T12

GN/WH

0.5

CLUTCH POSITION SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
