Valve Body: Assembly

Courtesy of CHRYSLER GROUP, LLC

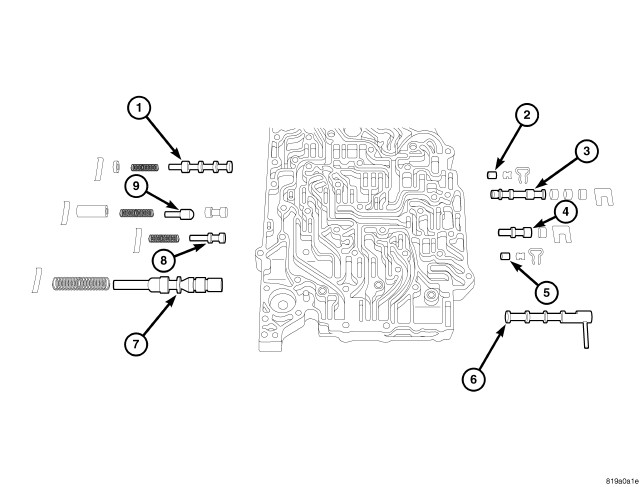

1 - CONVERTER CLUTCH SWITCH VALVE

6 - MANUAL VALVE

2 - L/R SWITCH VALVE

7 - PRESSURE REGULATOR VALVE

3 - SOLENOID SWITCH VALVE

8 - TORQUE CONVERTER REGULATOR VALVE

4 - DC SWITCH VALVE

9 - CONVERTER CLUTCH CONTROL VALVE

5 - LC SWITCH VALVE

NOTE:

Use exploded view for assembly.

Install the valves into valve body.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

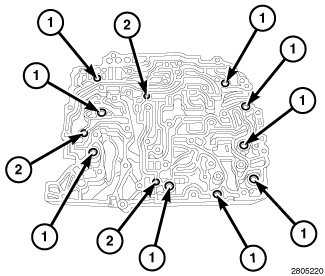

The valve body contains some check balls that are pressed into a tapered bore (1). These check balls are not removable

NOTE:
Locations of check balls are very important. Please compare from disassembly the location of these check balls.
Install the check balls (2) if equipped.

Courtesy of CHRYSLER GROUP, LLC

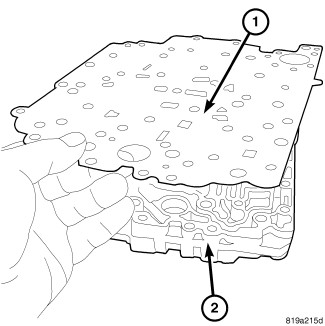

Install the inner separator plate (1).

Courtesy of CHRYSLER GROUP, LLC

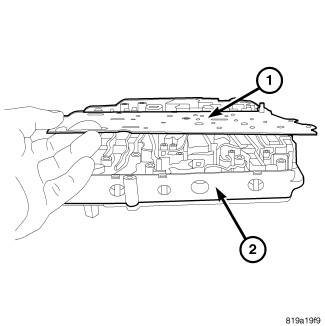

Install the outer separator plate (1).

Courtesy of CHRYSLER GROUP, LLC

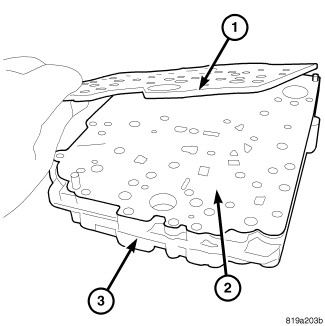

Install the transfer plate (1).

Courtesy of CHRYSLER GROUP, LLC

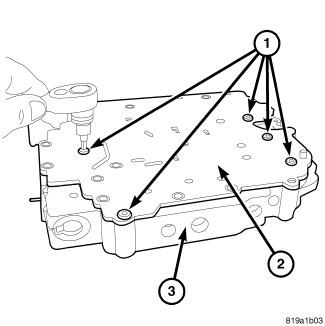

Install the bolts (1) at the transfer plate (2) and tighten to 6 N.m (50 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the pressure control solenoid on to the valve body.
Install the bolt (1) at the pressure control solenoid (2) and tighten to 6 N.m (50 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the pressure control sensor onto the valve body.
Install the bolts (1) to the pressure control sensor and tighten to 6 N.m (50 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC

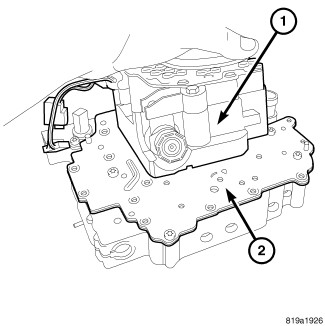

Install the solenoid pack (1) onto the valve body (2).

Courtesy of CHRYSLER GROUP, LLC

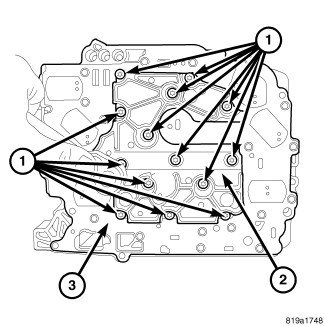

Turn valve body over and install the clamp plate (2) onto the valve body.
Install the clamp plate bolts and tighten to 6 N.m (50 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC

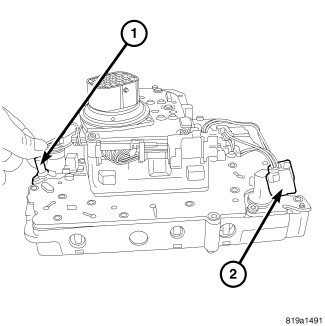

Plug in the electrical connectors pressure control solenoid and pressure control sensors.
