Module, Powertrain Control (Pcm): Removal

  1. Disconnect and isolate the negative battery cable.

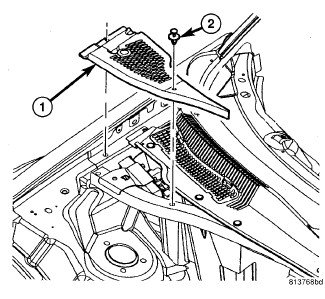

    GC0080682Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (2) that secure the front cowl top panel (1) to the right rear corner of the engine compartment
  3. Remove the front cowl top panel.
    GC0144877Courtesy of CHRYSLER GROUP, LLC
  4. Remove the Powertrain Control Module (PCM) fastener (1).
  5. Disconnect the PCM electrical connectors (2).
  6. Remove the PCM (3) from the vehicle.
    GC0144878Courtesy of CHRYSLER GROUP, LLC
  7. If required, remove the NVH rubber bumper (3) from the PCM (4).
  8. If required, remove the PCM mounting bracket fasteners (2) and remove the bracket (1).
