Module, Adaptive Cruise Control (Acc): Installation: Bracket

Courtesy of CHRYSLER GROUP, LLC

1. Position the mounting bracket to the underside of the bumper support bar.

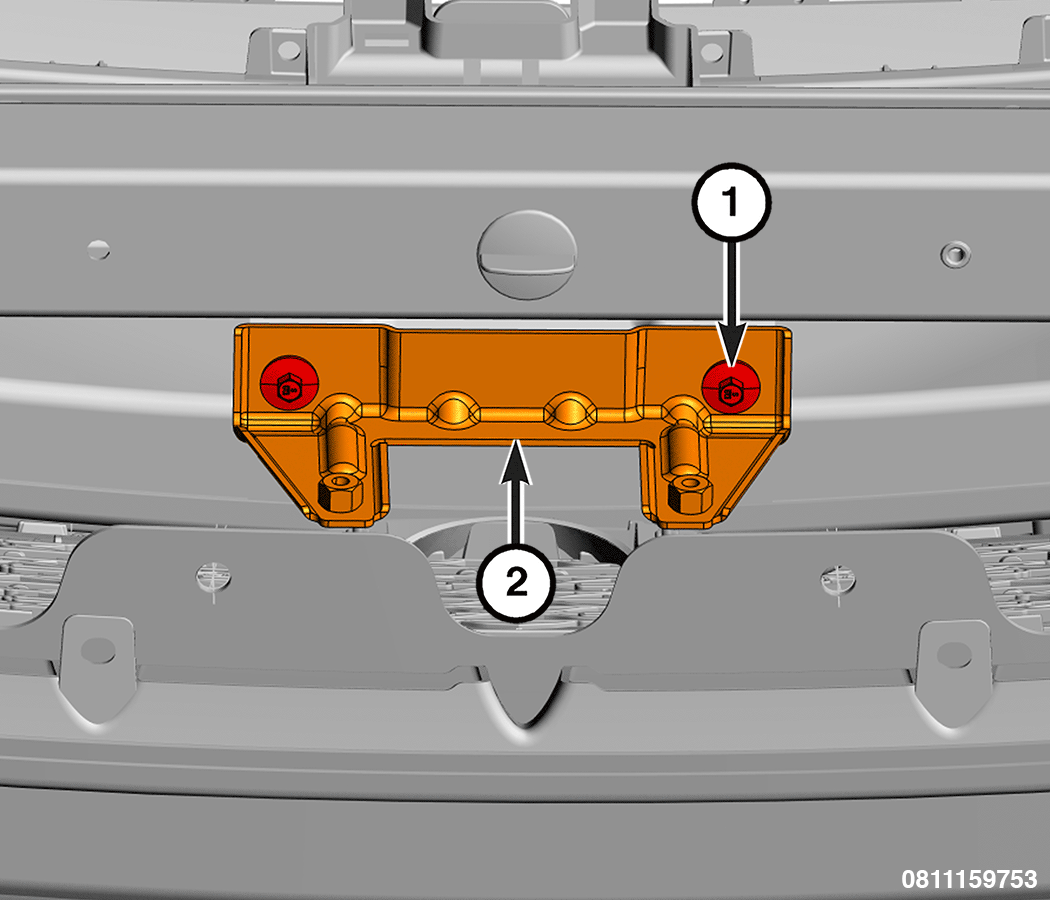

2. Install and tighten the fasteners (1) that secure the mounting bracket (2) to the support bar. Tighten the screws securely.
3. Install the ACC sensor onto the mounting bracket. Refer to MODULE, ADAPTIVE CRUISE CONTROL (ACC), INSTALLATION .
