Module, Keyless Ignition Node (Kin): Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

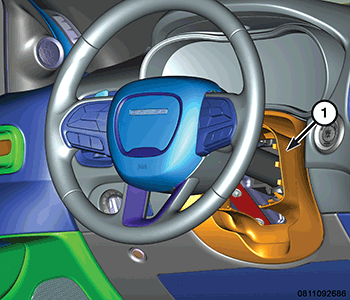

- Using a trim stick or another suitable wide flat-bladed tool, disengage the snap clips that secure the molded hard plastic outer edges of the steering column gap hider bezel (1) to the instrument panel.

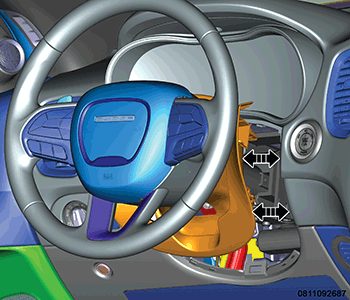

- Position the telematic steering column outward and slide the gap hider forward.

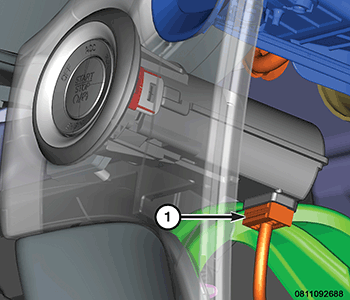

- Reach in through the opening and disconnect the electrical connector (1) from the Keyless Ignition Node (KIN) module.

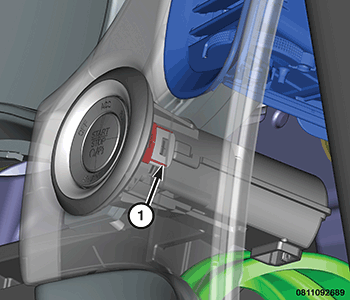

- There is a tab (1) on each side of the KIN. To remove the KIN, release each tab securing the KIN to the bezel.
