Installation - RHD

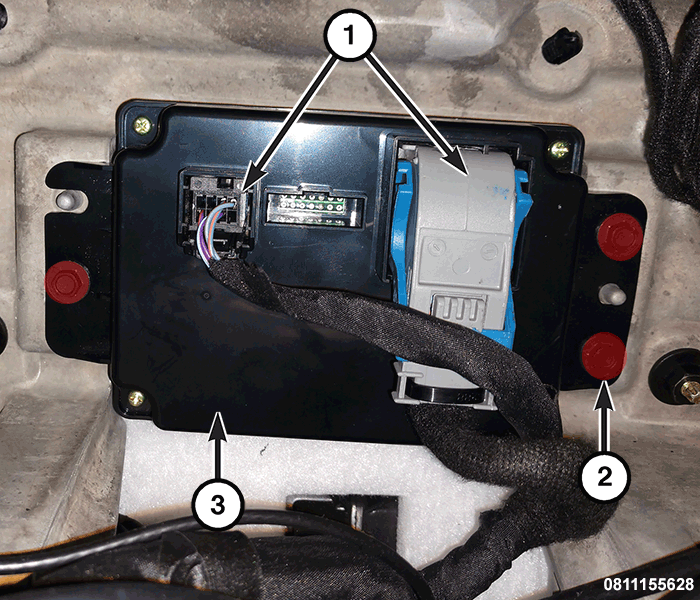

GC0184569Courtesy of CHRYSLER GROUP, LLC
  1. Position the HVAC module (3) to the instrument panel reinforcement.
  2. Install the three screws (2) that secure the HVAC module to the instrument panel reinforcement and tighten securely.
  3. Connect the wire harness connectors (1) to the HVAC module.
  4. Install the radio. Refer to RADIO, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  6. Initiate the Actuator Calibration function using a scan tool. Refer to DIAGNOSTIC CODE INDEX
