Module-Power Liftgate C2 (Standard) Connector End View (D3839B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924126-1

Part Description: Not Available

Connector No: D3839B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

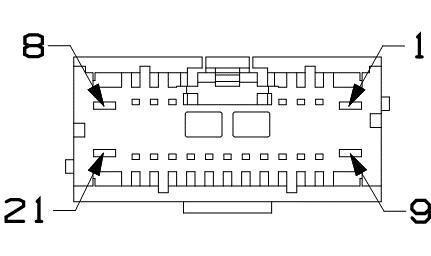

Fig 1: Module-Power Liftgate C2 Connector End View (Standard)

Courtesy of CHRYSLER

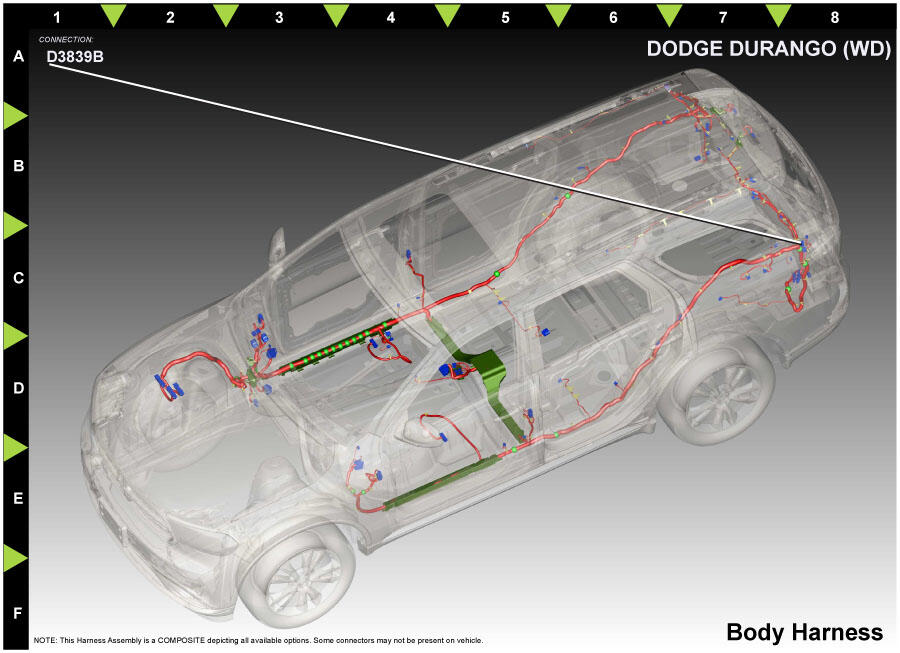

Fig 2: Module-Power Liftgate C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A111

DG/RD

2.0

FUSED B(+)

N/A

D251

WH/OG

0.35

CAN IHS (+)

N/A

D250

0.35

CAN IHS (-)

N/A

Q84

BG/GY

0.75

LIFTGATE LATCH CINCH DRIVER

N/A

Z923

2.0

GROUND

N/A

Q94

BG/GN

0.50

LIFTGATE CHIME DRIVER

N/A

G29

0.50

LIFTGATE SWITCH SIGNAL

N/A

Q901

OG/VT

0.50

LOGIC GROUND

N/A

Q76

OG/YE

0.50

LATCH SECONDARY POSITION SENSE

N/A

G78

VT/OG

0.35

DECKLID/LIFTGATE AJAR SWITCH SENSE

N/A

Q79

OG/BU

0.50

SECTOR SWITCH SENSE

N/A

Q75

OG/BU

0.50

LEFT PINCH SENSOR SIGNAL

N/A

Q78

OG/DB

0.50

RIGHT PINCH SENSOR SIGNAL

N/A

G25

VT/BG

0.50

DECKLID/LIFTGATE RELEASE SWITCH SENSE

N/A

Q85

BG/WH

0.80

LIFTGATE LATCH RELEASE DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
