Module-Security Gateway C2 (Standard) Connector End View (D3921B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9028-30

Part Description: Not Available

Connector No: D3921B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

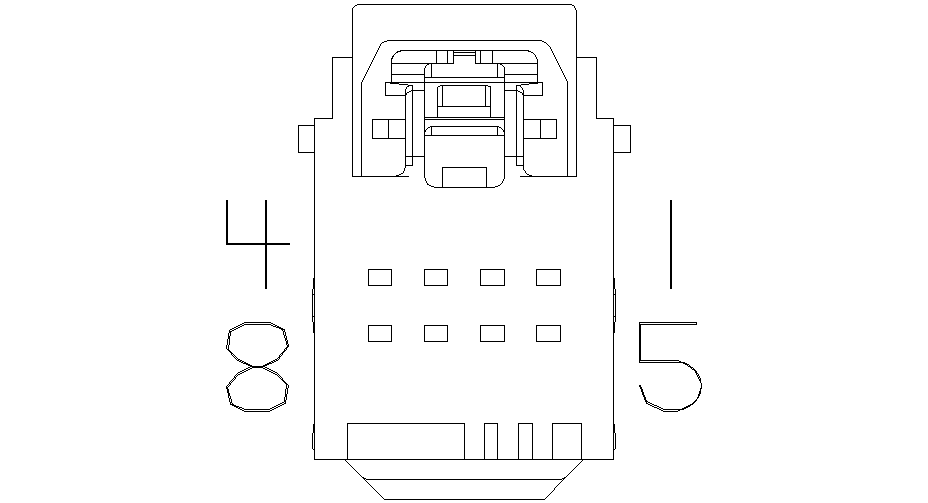

Fig 1: Module-Security Gateway C2 Connector End View (Standard)

Courtesy of CHRYSLER

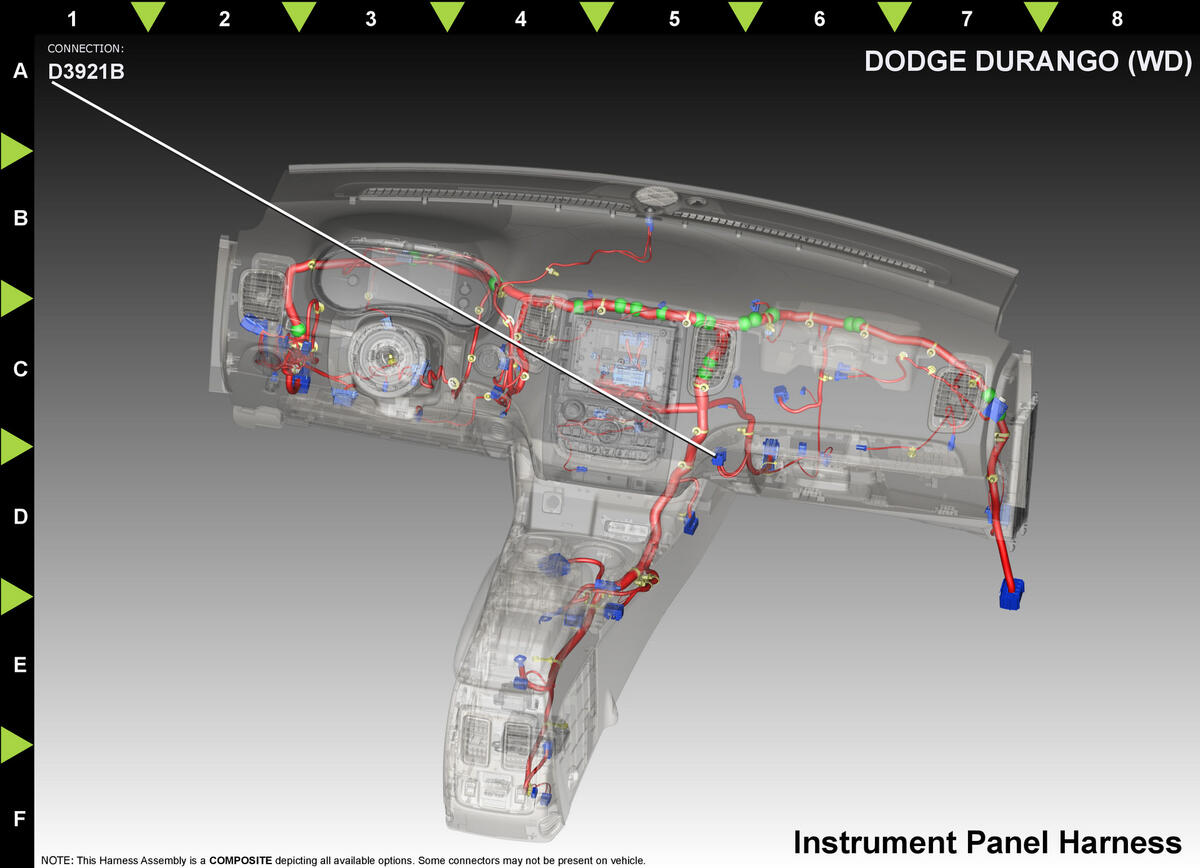

Fig 2: Module-Security Gateway C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D437

0.35

CAN IHS (+) AT

N/A

D434

0.35

DIAGNOSTIC CAN IHS (+)

N/A

D353

VT/WH

0.35

CAN IHS (+)

N/A

Z912

0.35

GROUND

N/A

A902

0.35

FUSED B(+)

N/A

D438

0.35

CAN IHS (-) AT

N/A

D433

BG/YE

0.35

DIAGNOSTIC CAN IHS (-)

N/A

D352

YE/DB

0.35

CAN IHS (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
