Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1456985-3

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

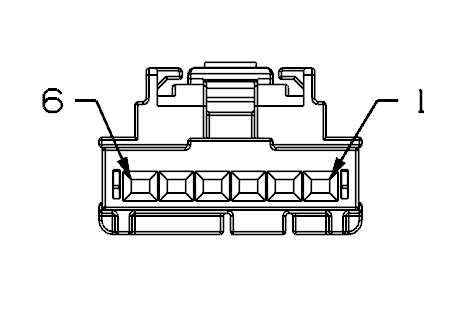

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)
GCWD1016843Courtesy of CHRYSLER

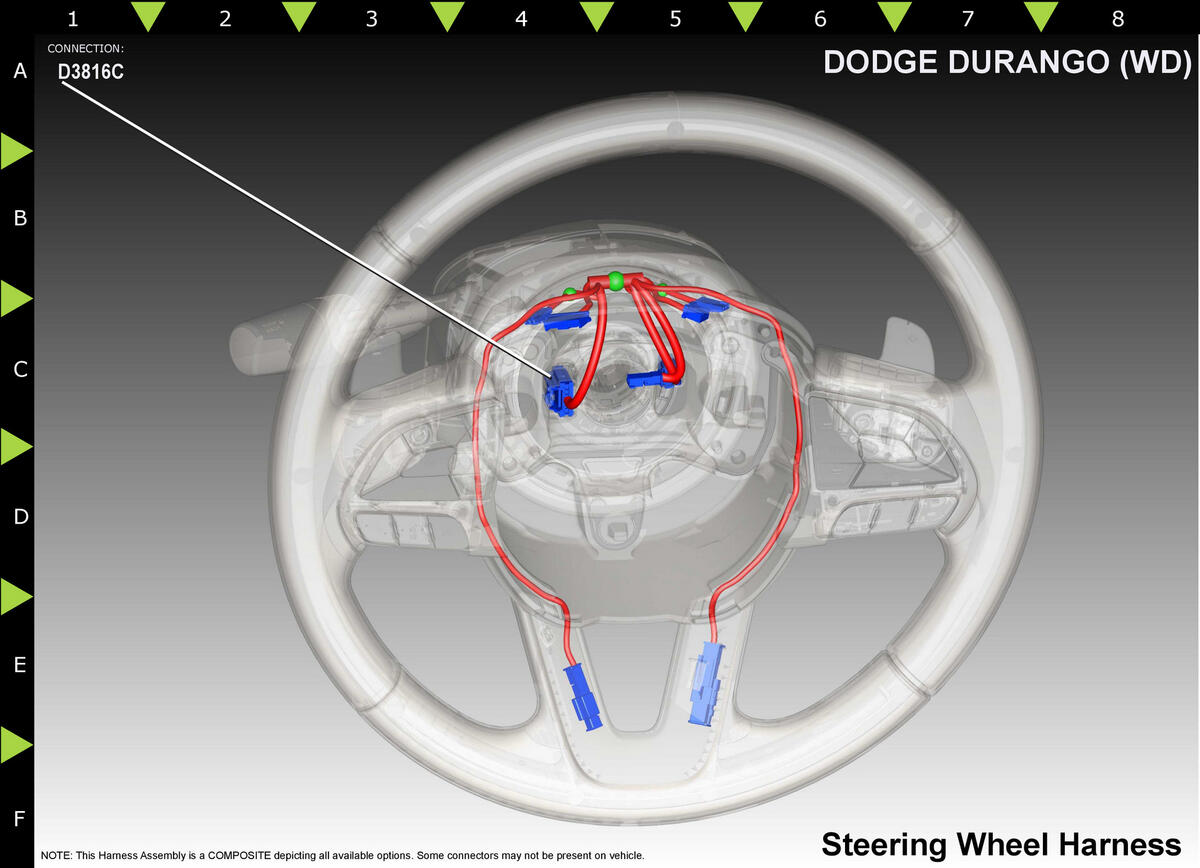

Fig 2: Module-Steering Column Control C3 Component Location (Standard)
GCWD1260062Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A92 VT 0.35 FUSED B(+) BASE
3 X3 DB/BK 0.35 HORN SWITCH SENSE BASE
4 D592 BG 0.35 LIN BUS BASE
5 Z92 BK 0.35 GROUND N/A
6 D594 RD/BK 0.35 LIN BUS BASE
(1) Pins not listed are not used for this connector
