Control-A/C-Heater-Rear (Standard) Connector End View (D6609A)

Harness-Family: Headliner

Color: GRAY

Gender: FEMALE

Part Number: 30700-1207

Part Description: Not Available

Connector No: D6609A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

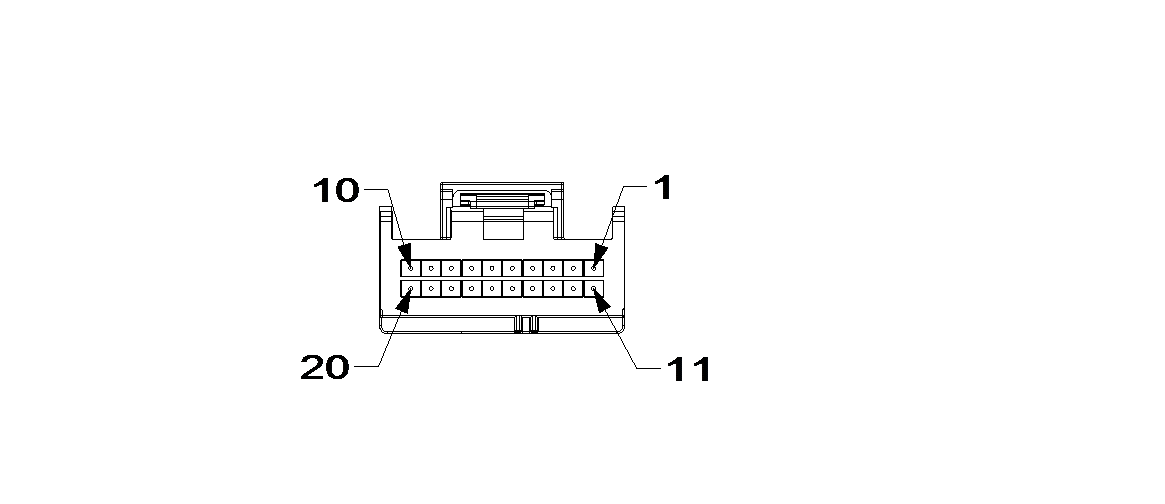

Fig 1: Control-A/c-Heater-Rear Connector End View (Standard)
GCWD1147960Courtesy of CHRYSLER

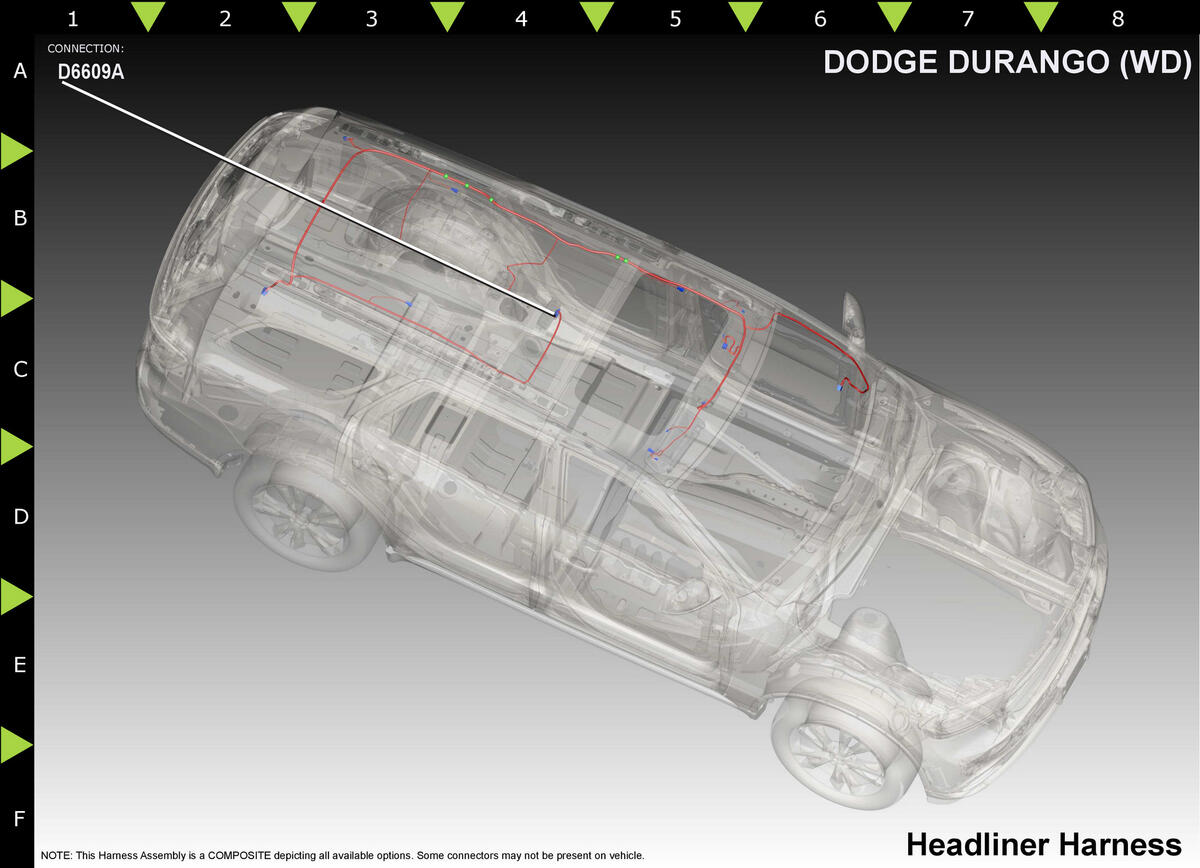

Fig 2: Control-A/c-Heater-Rear Component Location (Standard)
GCWD1260251Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C57 DB 0.50 REAR BLOWER MOTOR CONTROL N/A
2 D311 BU 0.50 CAN IHS (+) N/A
4 C67 DB/VT 0.50 REAR MODE DRIVER N/A
5 C69 DB/BG 0.50 REAR MODE COMMON DRIVER N/A
6 C326 DB/OG 0.50 REAR MODE DOOR SIGNAL N/A
8 C166 BG 0.50 RIGHT FLOOR TEMPERATURE SENSOR SIGNAL N/A
10 A937 RD 0.50 FUSED B(+) N/A
11 Z923 BK 0.50 GROUND N/A
12 D312 WH 0.50 CAN IHS (-) N/A
13 C323 BU/YE 0.50 REAR BLEND DOOR SIGNAL RETURN N/A
14 C59 DB/GY 0.50 REAR BLEND DOOR DRIVER N/A
15 C60 DB/PK 0.50 REAR BLEND DOOR COMMON DRIVER N/A
16 C322 BU/OG 0.50 REAR BLEND DOOR SIGNAL N/A
17 C321 BU 0.50 REAR BLEND DOOR FEED N/A
18 C168 OG 0.50 REAR PANEL TEMPERATURE SENSOR SIGNAL N/A
19 C169 BU/DB 0.50 TEMPERATURE SENSOR RETURN N/A
20 F948 PK/GN 0.50 FUSED IGNITION RUN/START CONTROL OUTPUT N/A
(1) Pins not listed are not used for this connector
