Fan Module-Radiator Cooling (Heavy Duty Cooling) Connector End View (D3022A)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7287-1404-10

Part Description: Not Available

Connector No: D3022A

Option: HEAVY DUTY COOLING

Repair Kit Part Number: Not Available

Cavity Count: null

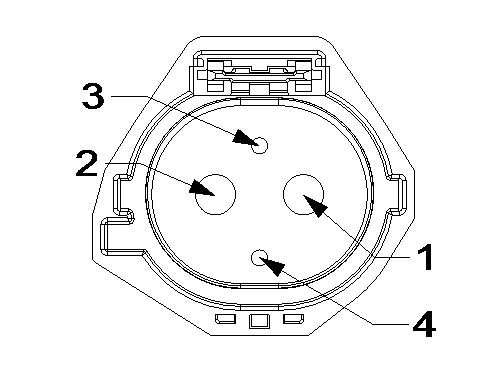

Fig 1: Fan Module-Radiator Cooling Connector End View (HEAVY DUTY COOLING)

Courtesy of CHRYSLER

Fig 2: Fan Module-Radiator Cooling Component Location (HEAVY DUTY COOLING)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A957

6.0

FUSED B(+)

N/A

Z906

6.0

GROUND

N/A

K175

BN/BU

0.50

RAD FAN CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
