Module-Active Damping Control C1 (Standard) Connector End View (D2556A)

Harness-Family: Suspension_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 7-967312-4_965543-3_968822-3

Part Description: Not Available

Connector No: D2556A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

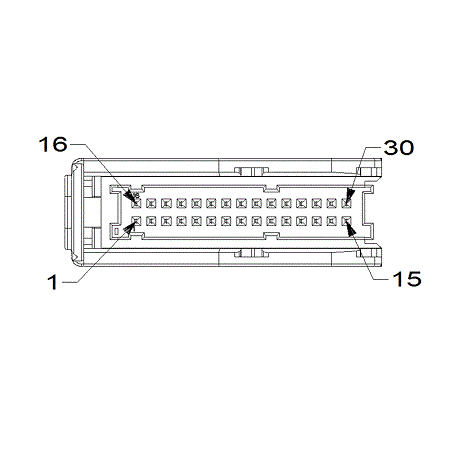

Fig 1: Module-Active Damping Control C1 Connector End View (Standard)
GCWD1012495Courtesy of CHRYSLER

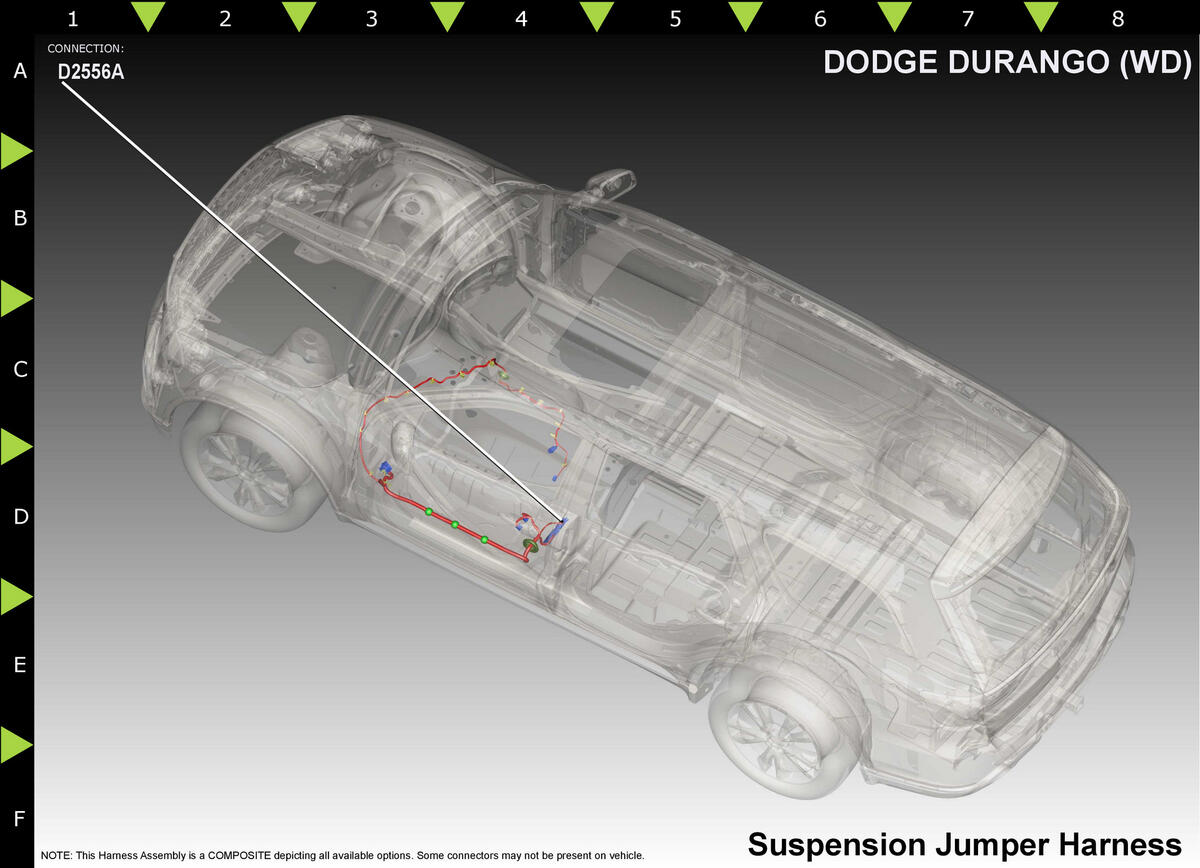

Fig 2: Module-Active Damping Control C1 Component Location (Standard)
GCWD1260529Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D152 YE 0.35 CAN C (-) N/A
2 D153 GY/YE 0.50 CAN C (+) N/A
4 S165 BG/WH 0.50 ACCEL SENSOR SIGNAL FT RT N/A
10 S161 BG/GN 0.35 ACCEL SENSOR RTN FT LT N/A
11 S163 BG/OG 0.50 ACCEL SENSOR PWR FT RT N/A
12 S162 BG/BN 0.35 ACCEL SENSOR SIGNAL FT LT N/A
13 S164 BG/VT 0.35 ACCEL SENSOR RTN FT RT N/A
14 S160 BG/DG 0.50 ACCEL SENSOR PWR FT LT N/A
23 S172 DG/OG 0.50 DAMPER VALVE PWR RR LT N/A
(1) Pins not listed are not used for this connector
