Module-Door-Driver C4 (Standard) Connector End View (D3818D)

Harness-Family: Door_Front_Left

Color: BLACK

Gender: FEMALE

Part Number: 4-2177196-1_2177231-1

Part Description: Not Available

Connector No: D3818D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

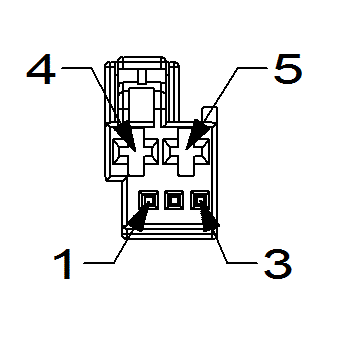

Fig 1: Module-Door-Driver C4 Connector End View (Standard)

Courtesy of CHRYSLER

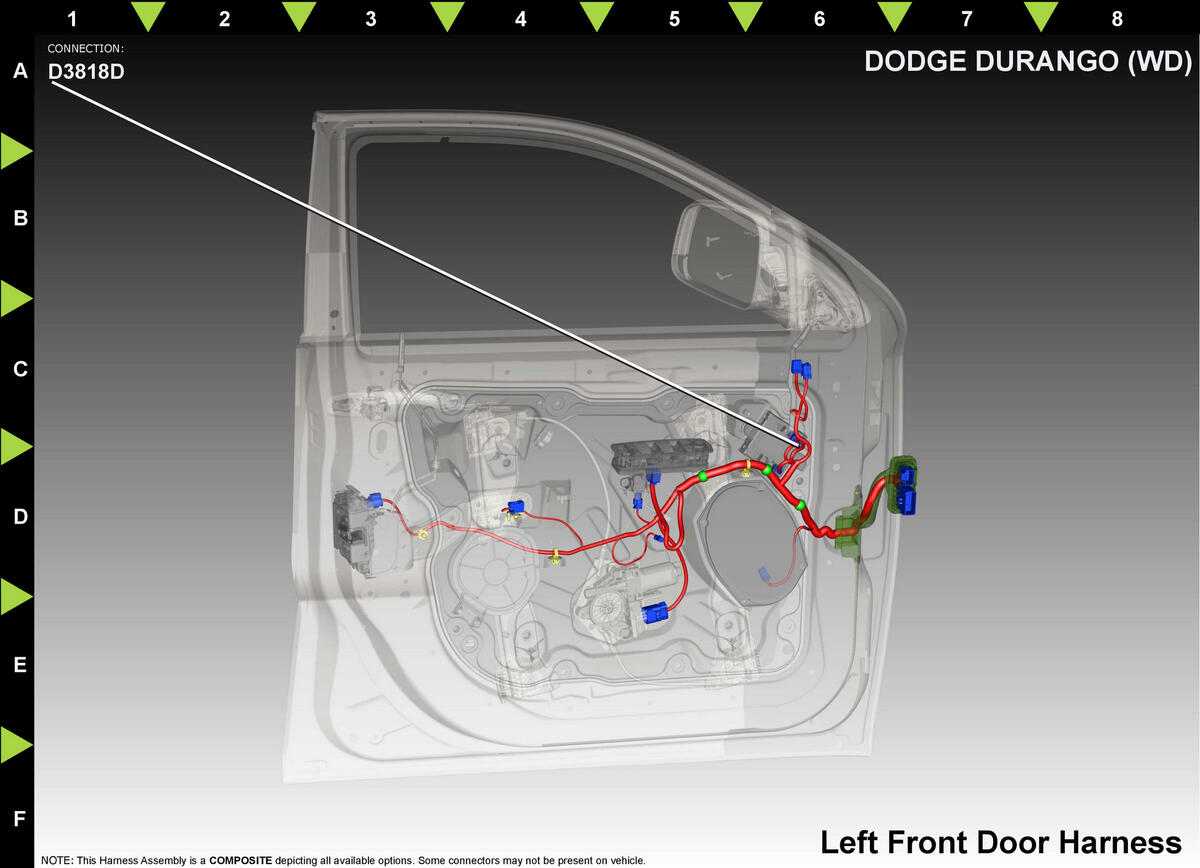

Fig 2: Module-Door-Driver C4 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q301

OG/WH

0.75

DRIVER WINDOW HALL SENSOR A SIGNAL

N/A

Q305

0.75

DRIVER WINDOW HALL SENSOR SUPPLY

N/A

Q991

BK/OG

0.75

DRIVER WINDOW HALL SENSOR RETURN

N/A

Q11

OG/GN

2.0

DRIVER WINDOW DRIVER (UP)

N/A

Q21

OG/WH

2.0

DRIVER WINDOW DRIVER (DOWN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
