Module-EPS C1 (Standard) Connector End View (D2777A)

Harness-Family: HDLP_Dash

Color: BROWN

Gender: FEMALE

Part Number: 7287-1405-80

Part Description: Not Available

Connector No: D2777A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Eps C1 Connector End View (Standard)

Courtesy of CHRYSLER

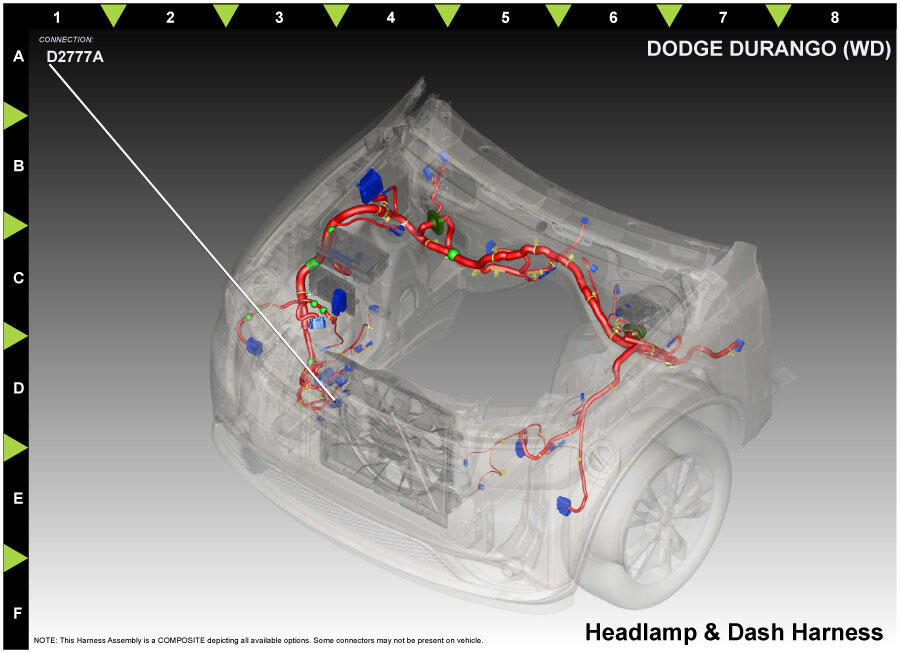

Fig 2: Module-Eps C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A951

6.0

FUSED B(+)

N/A

Z907

6.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
