Module-Electronic Overhead (Standard) Connector End View (D6627A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 31408-1160

Part Description: Not Available

Connector No: D6627A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Electronic Overhead Connector End View (Standard)
GCWD1006371Courtesy of CHRYSLER

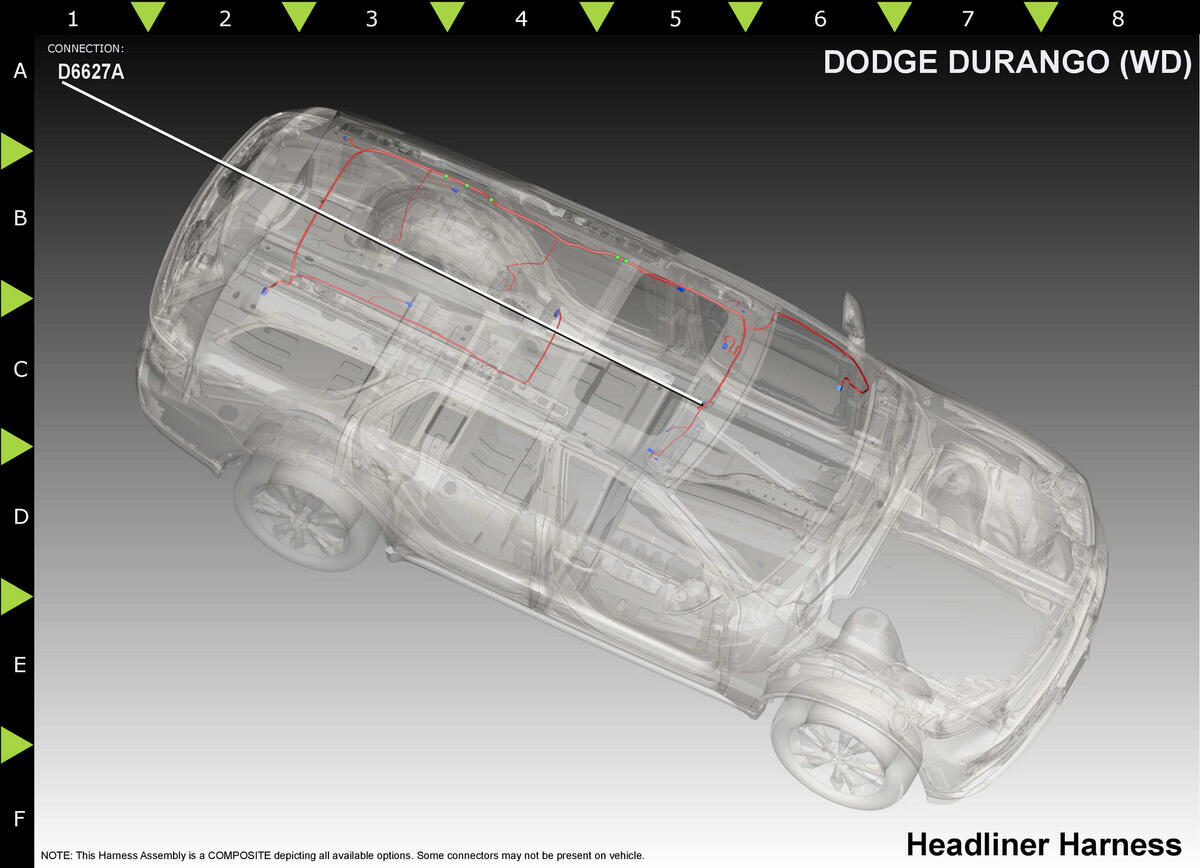

Fig 2: Module-Electronic Overhead Component Location (Standard)
GCWD1260157Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 G38 GY 0.50 UGDO ENABLE CONTROL CIRCUIT N/A
2 Z919 BK 0.50 GROUND N/A
3 E12 OG/GY 0.50 PANEL LAMPS DRIVER N/A
5 Z923 BK 0.35 GROUND N/A
7 M11 YE/VT 0.35 COURTESY LAMPS DRIVER N/A
8 M27 YE/BU 0.35 READING LAMPS DRIVER N/A
9 Q3 OG/BG 0.50 SUNROOF OPEN SWITCH SENSE N/A
10 Q4 OG/YE 0.50 SUNROOF VENT SWITCH SENSE N/A
11 Q5 OG/BU 0.50 SUNROOF CLOSE SWITCH SENSE N/A
12 Q6 OG/GN 0.50 SUNROOF SWITCH SUPPLY N/A
15 G25 VT/BG 0.50 DECKLID/LIFTGATE RELEASE SWITCH SENSE N/A
16 Z919 BK 0.50 GROUND EXCEPT SUNROOF
(1) Pins not listed are not used for this connector
