Module-External Disc (Standard) Connector End View (D2761A)

Harness-Family: Console_Center

Color: BLACK

Gender: FEMALE

Part Number: 175966-2

Part Description: Not Available

Connector No: D2761A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

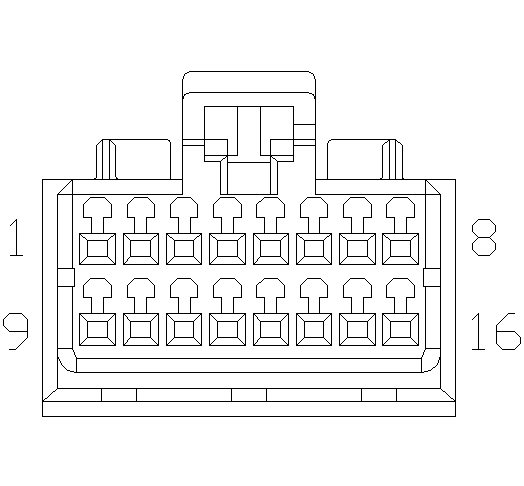

Fig 1: Module-External Disc Connector End View (Standard)

Courtesy of CHRYSLER

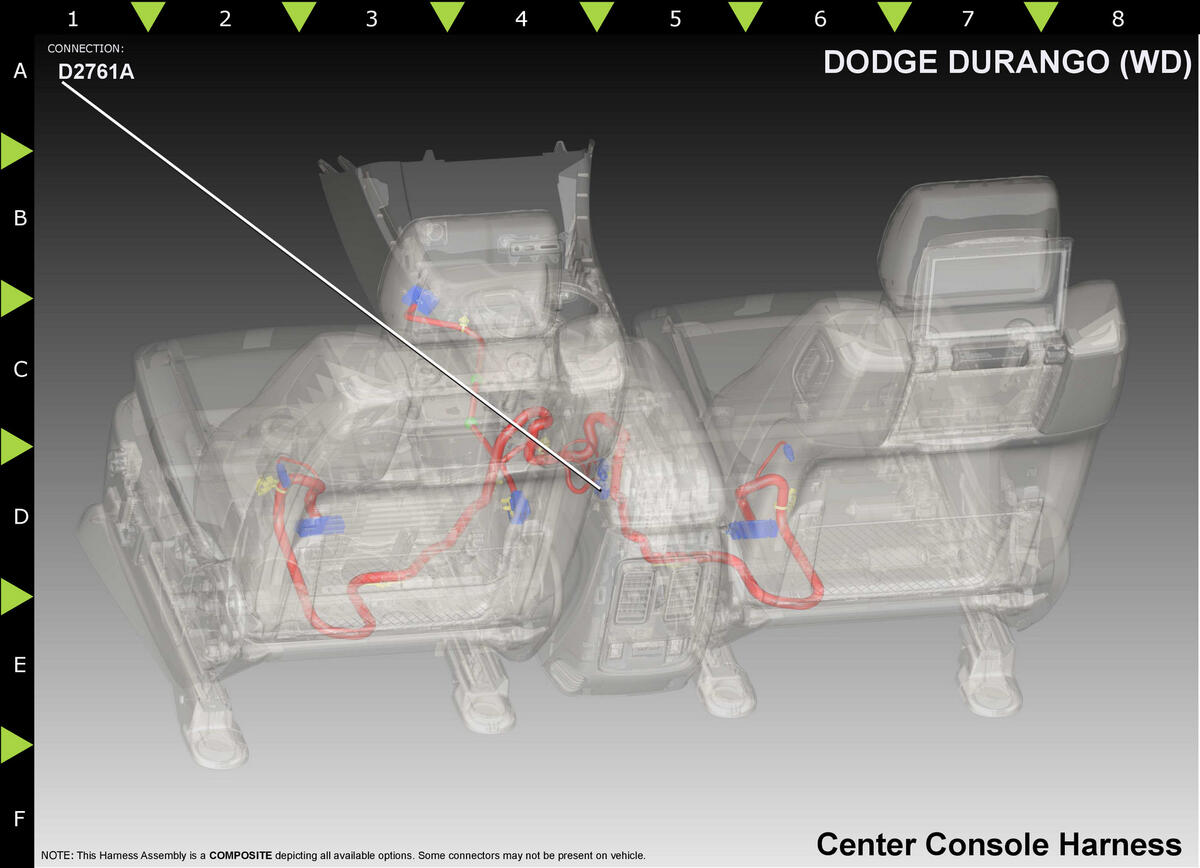

Fig 2: Module-External Disc Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A936

0.50

FUSED B(+)

N/A

X41

DG/WH

0.50

CD CHANGER AUDIO LEFT SIGNAL

N/A

D199

WH/GY

0.50

CAN IHS (+)

N/A

D198

0.50

CAN IHS (-)

N/A

X40

GY/WH

0.50

CD CHANGER AUDIO RIGHT SIGNAL

N/A

X140

GY/OG

0.50

CD CHANGER AUDIO GROUND

N/A

Z912

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
