Module-Fuel Pump (Standard) Connector End View (D6602A)

Harness-Family: Fuel_Tank

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200410

Part Description: Not Available

Connector No: D6602A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

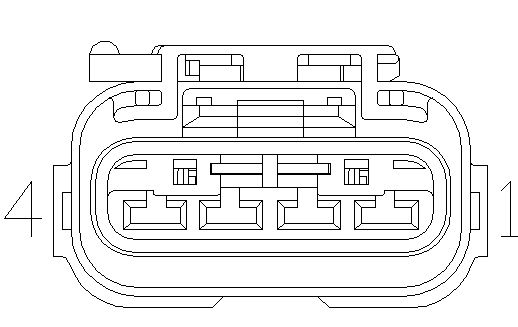

Fig 1: Module-Fuel Pump Connector End View (Standard)

Courtesy of CHRYSLER

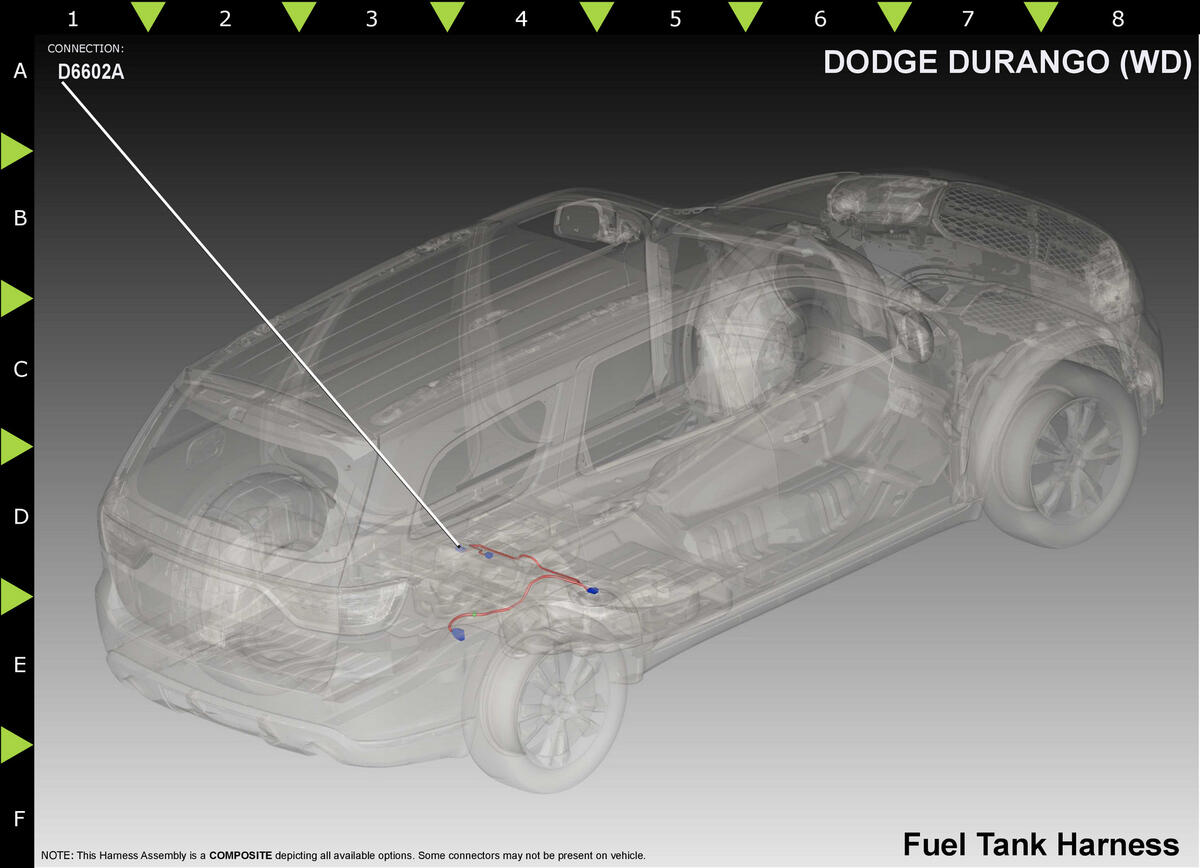

Fig 2: Module-Fuel Pump Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z917

2.0

GROUND

N/A

G109

BK/WH

0.50

FUEL LEVEL SENSE RETURN

N/A

DB/WH

0.50

FUEL LEVEL SENSOR SIGNAL

N/A

DB/OG

2.0

FUEL PUMP CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
