Module-Keyless Ignition Node (Standard) Connector End View (D2664A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 776204-2

Part Description: Not Available

Connector No: D2664A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Keyless Ignition Node Connector End View (Standard)

Courtesy of CHRYSLER

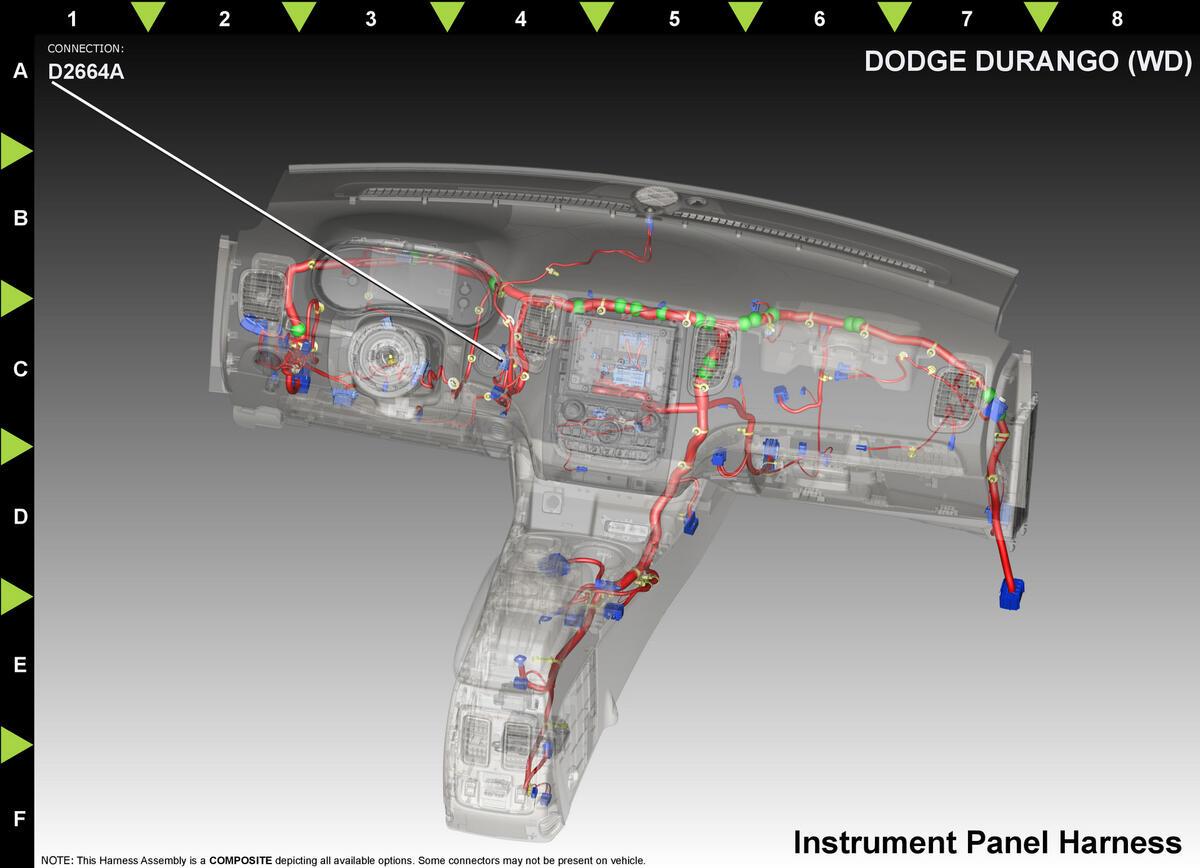

Fig 2: Module-Keyless Ignition Node Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z912

0.50

GROUND

N/A

G201

VT/BU

0.50

IGNITION SWITCH POSITION SIGNAL

N/A

D122

WH/GN

0.50

SECURITY K LINE COMMUNICATION

N/A

A910

0.50

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
