Module-Memory Seat C5 (Standard) Connector End View (D3873E)

Harness-Family: Seat_Cshn_Driver

Color: NATURAL

Gender: FEMALE

Part Number: 772-715-502

Part Description: Not Available

Connector No: D3873E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

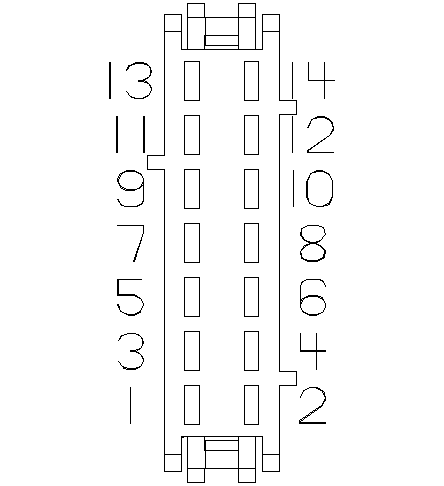

Fig 1: Module-Memory Seat C5 Connector End View (Standard)
GCWD1006417Courtesy of CHRYSLER

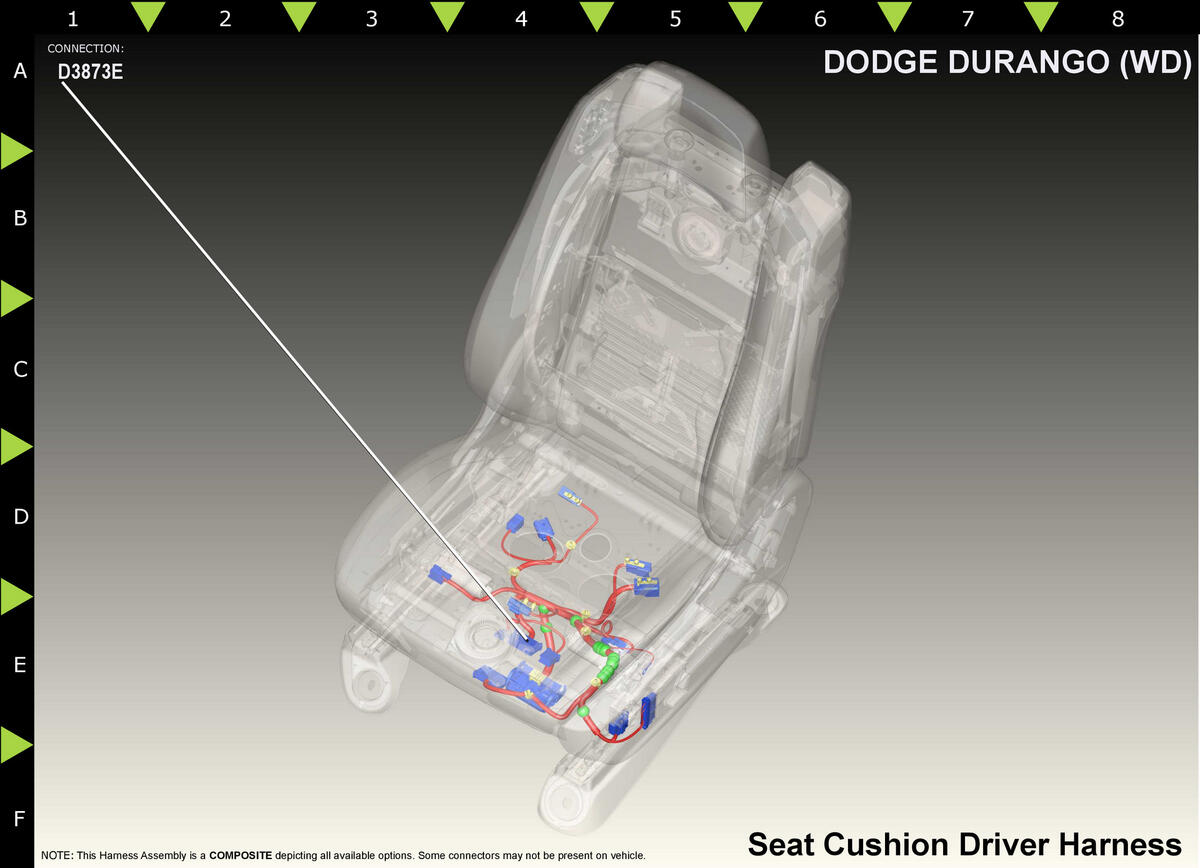

Fig 2: Module-Memory Seat C5 Component Location (Standard)
GCWD1260791Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 G404 PK/YE 0.35 DRIVER SEAT FRONT VERTICAL POSITION SENSE N/A
2 G402 PK/DB 0.35 DRIVER SEAT REAR VERTICAL POSITION SENSE N/A
3 G401 PK/GN 0.35 DRIVER SEAT HORIZONTAL POSITION SENSE N/A
4 G494 YE/PK 0.35 DRIVER SEAT FRONT VERTICAL SENSOR GROUND N/A
5 G492 BU/PK 0.35 DRIVER SEAT REAR VERTICAL SENSOR GROUND N/A
6 G491 PK/GY 0.35 DRIVER SEAT HORIZONTAL SENSOR GROUND N/A
8 P115 GN 1.0 DRIVER SEAT HORIZONTAL FORWARD DRIVER N/A
9 P117 GN/BU 1.0 DRIVER SEAT HORIZONTAL REARWARD DRIVER N/A
10 P113 GN/WH 1.0 DRIVER SEAT REAR VERTICAL DOWN DRIVER N/A
12 P111 GN/YE 1.0 DRIVER SEAT REAR VERTICAL UP DRIVER N/A
13 P121 GN/DB 1.0 DRIVER SEAT FRONT VERTICAL DOWN DRIVER N/A
14 P119 GN/DG 1.0 DRIVER SEAT FRONT VERTICAL UP DRIVER N/A
(1) Pins not listed are not used for this connector
