Module-Memory Seat C7 (Standard) Connector End View (D3873G)

Harness-Family: Seat_Cshn_Driver

Color: BLUE

Gender: FEMALE

Part Number: 3-969508-1

Part Description: Not Available

Connector No: D3873G

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

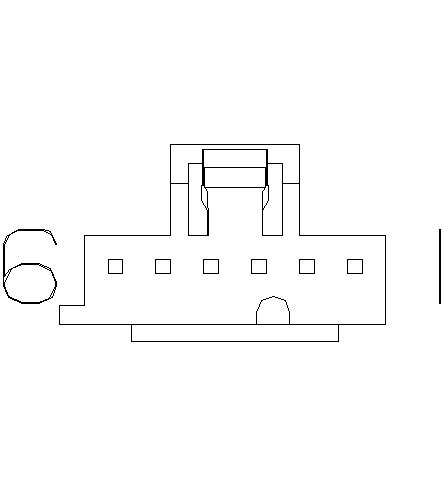

Fig 1: Module-Memory Seat C7 Connector End View (Standard)

Courtesy of CHRYSLER

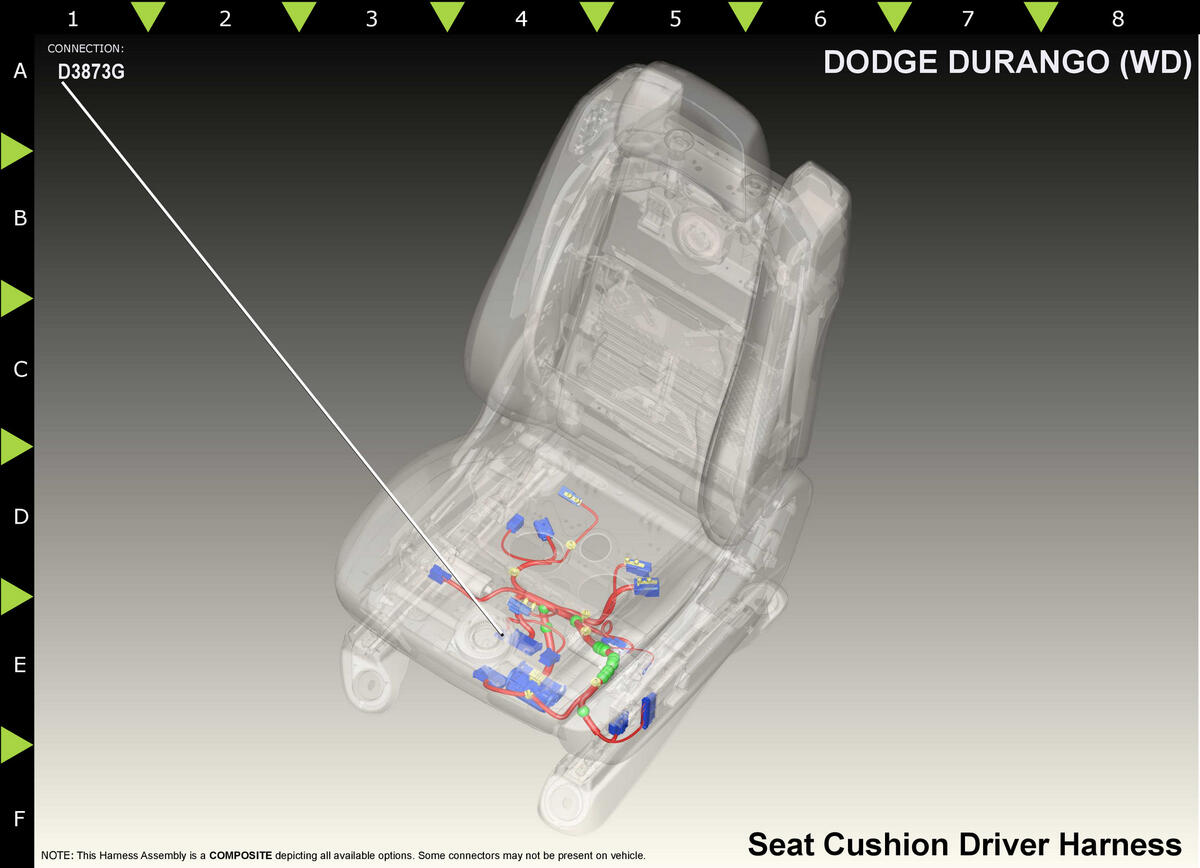

Fig 2: Module-Memory Seat C7 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P599

GN/BG

0.35

DRIVER SEAT SWITCH MUX RETURN

N/A

P239

GN/WH

0.35

DRIVER SEAT SWITCH REAR VERTICAL/HORIZONTAL SWITCH MUX

N/A

P339

GN/DB

0.35

DRIVER SEAT SWITCH FRONT VERTICAL/RECLINER SWITCH MUX

N/A

GN/OG

0.35

SEAT SWITCH B(+) SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
