Module-Power-Blower Motor-Rear (Standard) Connector End View (D6608A)

Harness-Family: HVAC_Rear

Color: BLACK

Gender: FEMALE

Part Number: 12041429

Part Description: Not Available

Connector No: D6608A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

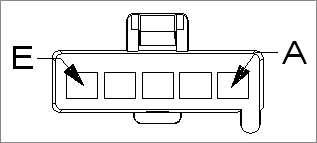

Fig 1: Module-Power-Blower Motor-Rear Connector End View (Standard)
GCWD1081948Courtesy of CHRYSLER

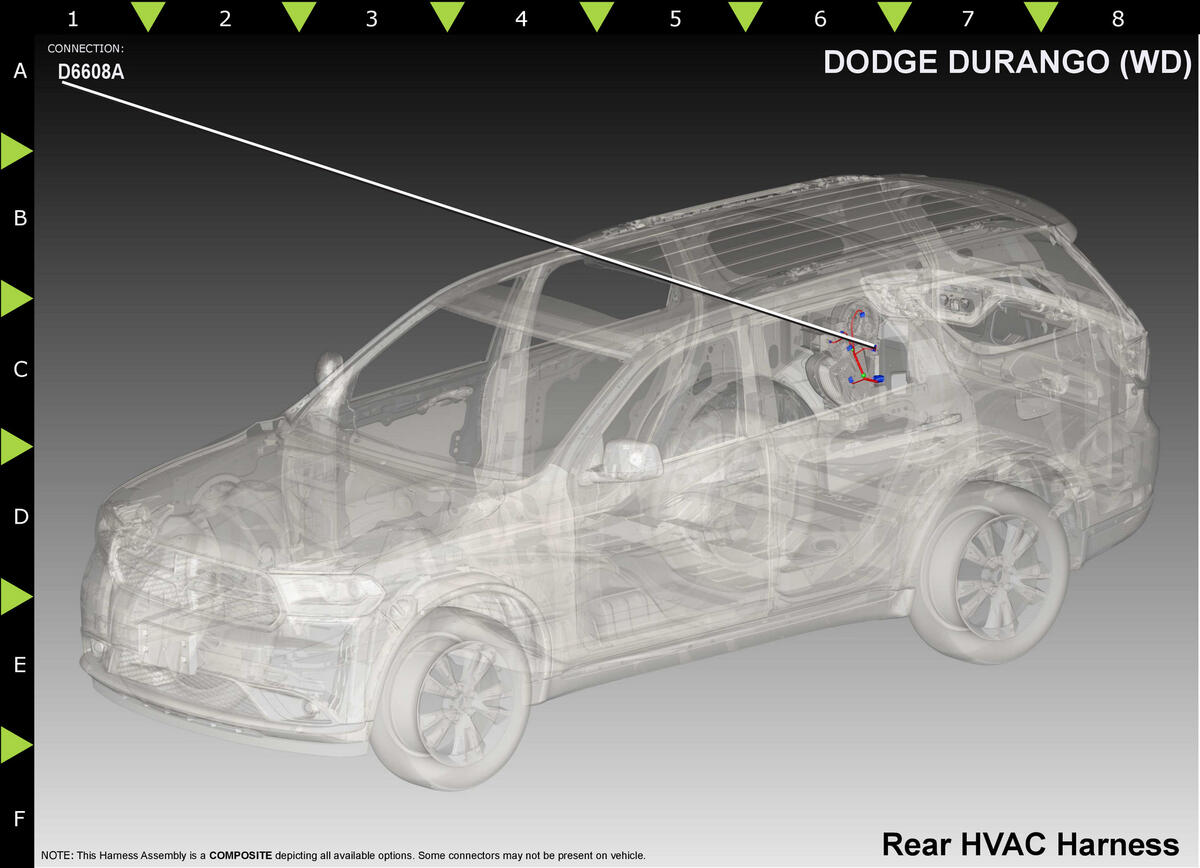

Fig 2: Module-Power-Blower Motor-Rear Component Location (Standard)
GCWD1260358Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z923 BK 3.0 GROUND N/A
2 C57 DB 0.50 REAR BLOWER MOTOR CONTROL N/A
3 C51 DB/DG 3.0 FUSED REAR BLOWER MOTOR RELAY OUTPUT N/A
4 C931 BK/WH 3.0 REAR FAN SENSE RETURN N/A
5 C31 RD 3.0 REAR FAN SENSE N/A
(1) Pins not listed are not used for this connector
